NSYTBS19168
ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20

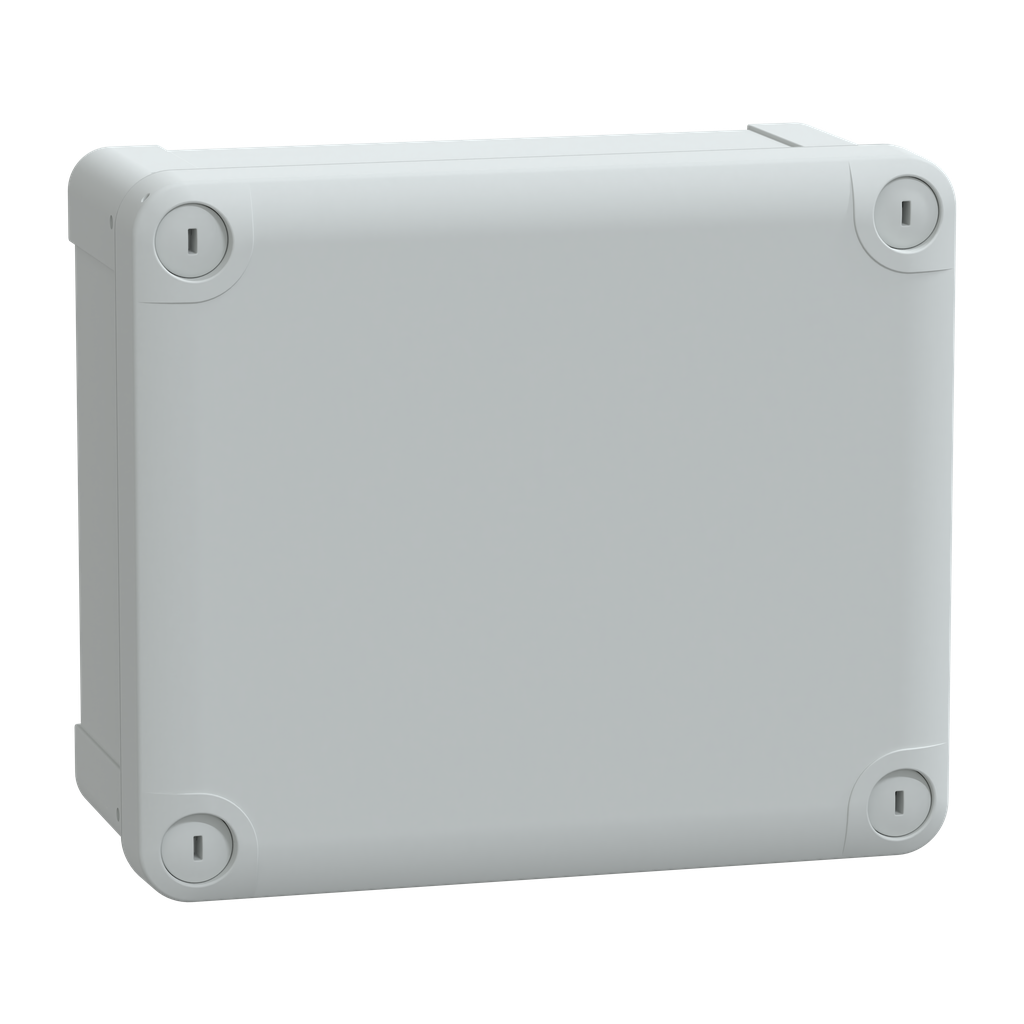

ABS industrial box for Thalassa TBS. Multi purpose. 192 x 164 x 87 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Removable Parts | cover by captive screws |
|---|---|
| Height | 192 mm |
| Product Or Component Type | industrial box |
| Internal Width | 150 mm |
| Internal Height | 175 mm |
| Internal Depth | 80 mm |
| Product Name | Thalassa TBS |
| Lock Type | captive screw flat outside sealed area |
| Device Composition |
|
| Type Of Front Cover | low plain cover |
| Range | Thalassa |
| Body Type | one piece moulded |
| Cover Fixing | plastic screws |
| Enclosure Mounting | wall mounted |
| Width | 164 mm |
| Depth | 87 mm |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Product Certifications | TÜV |
| Ik Degree Of Protection | IK07 IEC 62262 |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards | IEC 62208 |
| Net Weight | 0.45 kg |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Electrical Insulation Class | class II |
| Ambient Air Temperature For Storage | -15-40 °C |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Fire Resistance | 650 °C IEC 60695-2-11 |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012015EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
