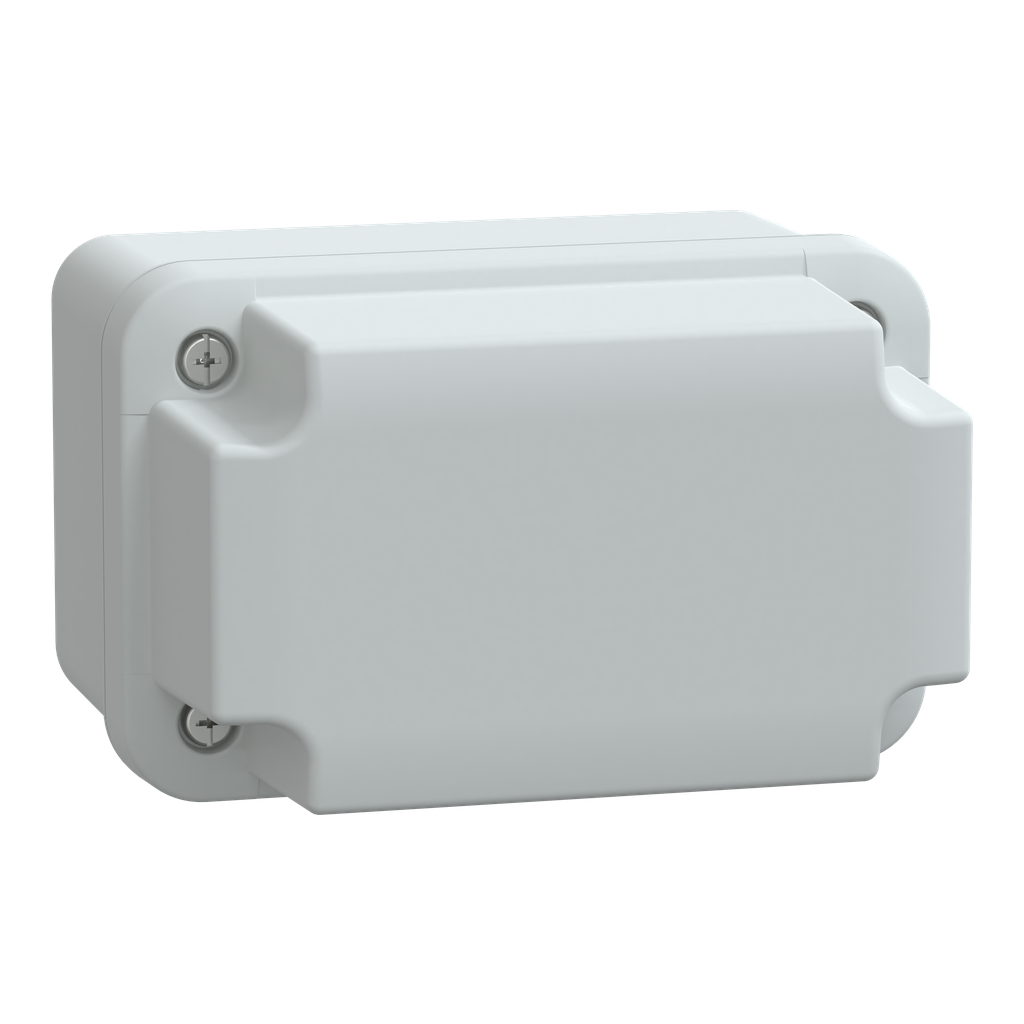

Thalassa TBS industrial ABS box with opaque cover H40. Int is 105 x 65 x 85 mm. Ext is 117 x 74 x 94 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Brand: Schneider Electric
Add to Quote CatalogueRemovable Parts | cover by captive screws |
---|---|
Height | 116 mm |
Product Or Component Type | industrial box |
Internal Width | 65 mm |
Internal Height | 105 mm |
Internal Depth | 85 mm |
Product Name | Thalassa TBS |
Lock Type | captive screw flat outside sealed area |
Device Composition |
|
Type Of Front Cover | high plain cover |
Range | Thalassa |
Body Type | one piece moulded |
Cover Fixing | plastic screws |
Enclosure Mounting | wall mounted |
Quantity Per Set | set of 3 |
Width | 116 mm |
Depth | 94 mm |
Device Application | multi-purpose |
Warranty | 18 months |
Product Certifications | TÜV |
Ik Degree Of Protection | IK07 IEC 62262 |
Ambient Air Temperature For Operation | -25-60 °C |
Standards | IEC 62208 |
Net Weight | 0.146 kg |
Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
Electrical Insulation Class | class II |
Ambient Air Temperature For Storage | -15-40 °C |
Material | ABS (acrylonitrile butadiene-styrene) |
Fire Resistance | 650 °C IEC 60695-2-11 |
Color | Gray RAL 7035) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2012015EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
