Removable Parts | cover by captive screws |
---|---|
Height | 341 mm |
Product Or Component Type | industrial box |
Internal Width | 275 mm |
Internal Height | 325 mm |
Internal Depth | 160 mm |

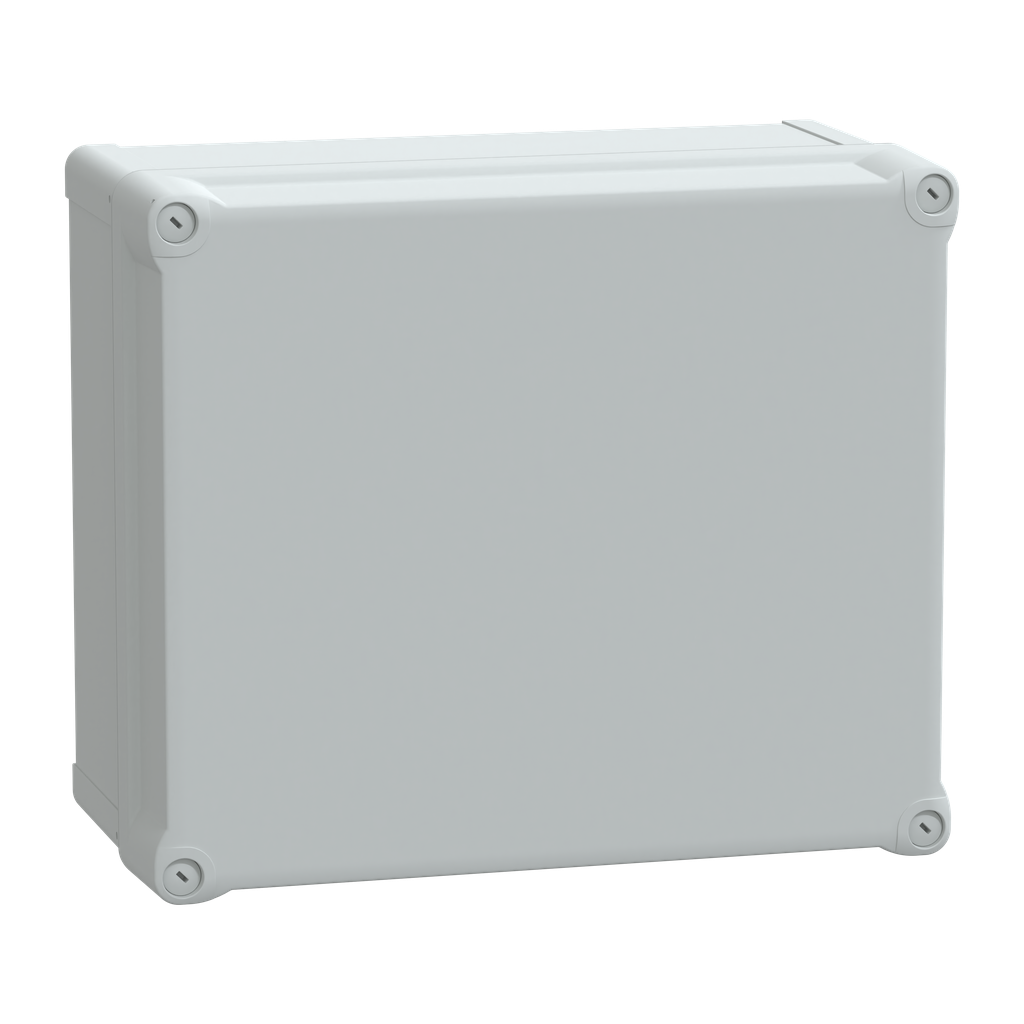

Product Name | Thalassa TBP |
Lock Type | captive screw flat outside sealed area |
Device Composition |
|
Type Of Front Cover | high plain cover |
Range | Thalassa |
Body Type | one piece moulded |
Cover Fixing | plastic screws |
Enclosure Mounting | wall mounted |
Width | 291 mm |
Depth | 168 mm |
Device Application | multi-purpose |
Warranty | 18 months |
Product Certifications |
|
Standards |
|
Net Weight | 1.66 kg |
Electrical Insulation Class | class II |
Material | polycarbonate |
Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
Color | Gray RAL 7035) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2012016EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI2012016EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK08 IEC 62262 |
Ambient Air Temperature For Operation | -25-80 °C |
Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
Ambient Air Temperature For Storage | -15-60 °C |
Fire Resistance | 960 °C |
