NSYSVR808

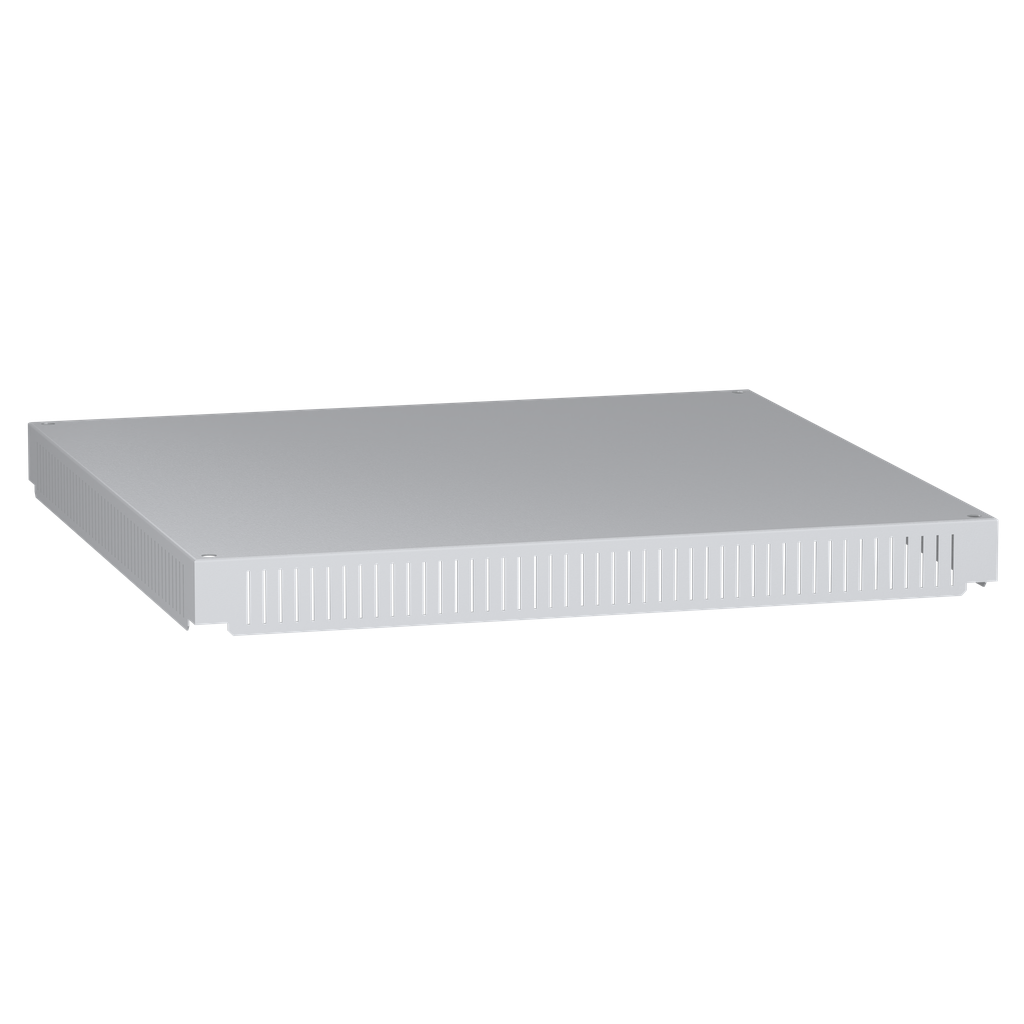

Spacial SF ventilated roof - 800x800 mm
Spacial SF ventilated roof. 799 x 800 mm. Provides the enclosure with natural ventilation. Roof fixing point location with screw type M12. Plastic and Steel. IP 30, Grey RAL 7035. Roof with 4 top elevation brackets.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | Spacial (Spacial SF) suitable enclosure |
|---|---|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | ventilated roof |
| Device Composition |
|
| Range | Spacial |
| Mounting Location | on top of enclosure |
| Quantity Per Set | set of 1 |
| Device Application |
|
| Warranty | 18 months |
| Fixing Mode | by elevatorsM12 - roof fixing point |
| Surface Finish | epoxy-polyester powder |
| Depth |
|
| Width |
|
| Height | 72 mm |
| Ip Degree Of Protection | IP30 IEC 60529 |
| Material |
|
| Color |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
