NSYSPLA100
Set of 2 uprights for mount. hor.support plate or 19"chassis in PLAencl.H1000mm

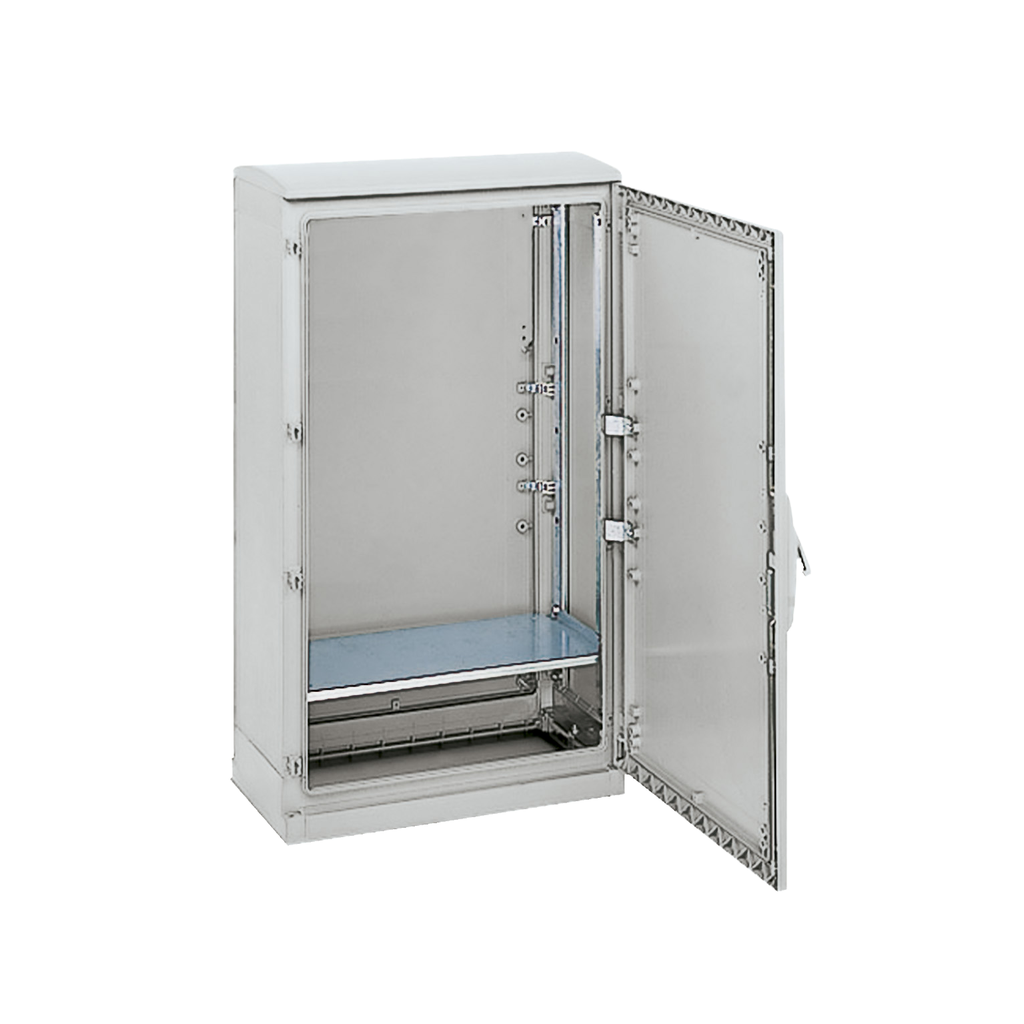

Set of Uprights for mounting horizontal support plate or 19 inch chassis in PLA. Enclosure dimension is W is 1000 mm. Multi-purpose mounting accessory. Intermediate support in the 2-door enclosures. Adjustable in depth every 50 mm with caged nuts. cut-out dimensions 11 x 13 mm. Galvanised Steel. Set of 2. Fixing elements, 1 right upright, 1 left upright incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Enclosure Nominal Dimensions |
|
|---|---|
| Mounting Support | intermediate support in the 2-door enclosures |
| Range Compatibility | Thalassa (Thalassa PLA) |
| Material | galvanised steel |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | upright |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Thalassa |
| Warranty | 18 months |
| Cut-Out Dimensions | 11 x 13 mm |
| Height | nominal 1000 mm |
| Adjustment | adjustable in depth every 50 mm with caged nuts |
| Depth | 70 mm |
| Fixing Mode | by fixing element - sides of enclosure |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110505EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
