NSYSPBC38

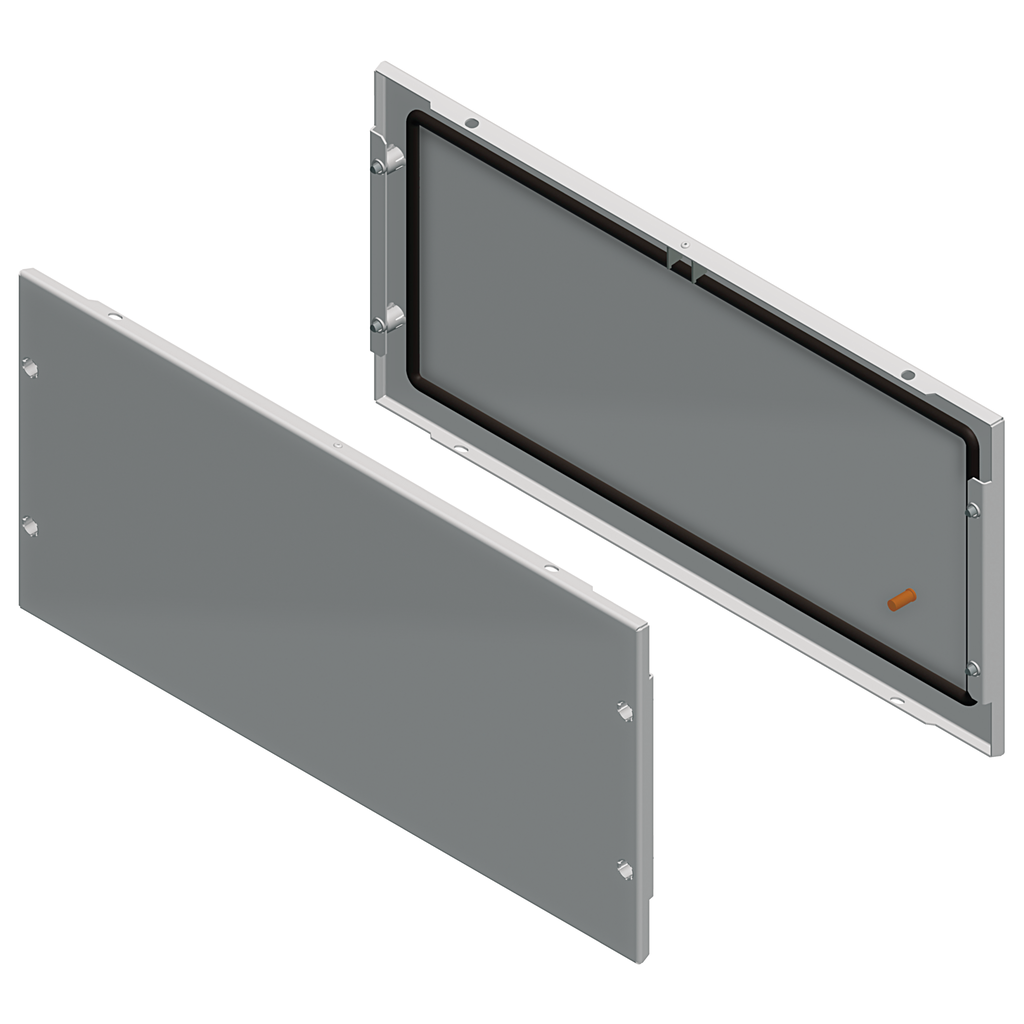

Spacial SF Side panels for busbar chamber - 300x800 mm
Spacial SF Side panels for busbar chamber. 299 x 800 mm. Multi-purpose enclosure accessory. Sides of top busbar chamber mounting. Fixing by screws type captive from the outside of enclosure. Steel made, epoxy-polyester powder surface finish. Grey RAL 7035. 2 side panels, fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | enclosure accessory |
|---|---|
| Quantity Per Set | set of 1 |
| Product Or Component Type | side panel |
| Device Application | multi-purpose |
| Range | Spacial |
| Mounting Location | sides of top busbar chamber |
| Warranty | 18 months |
| Width | nominal 800 mm |
| Height | nominal 300 mm |
| Range Compatibility | Spacial (Spacial SF) |
| Material | steel |
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Device Composition |
|
| Fixing Mode | by screws captive - from the outside of enclosure |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
