NSYSMEB

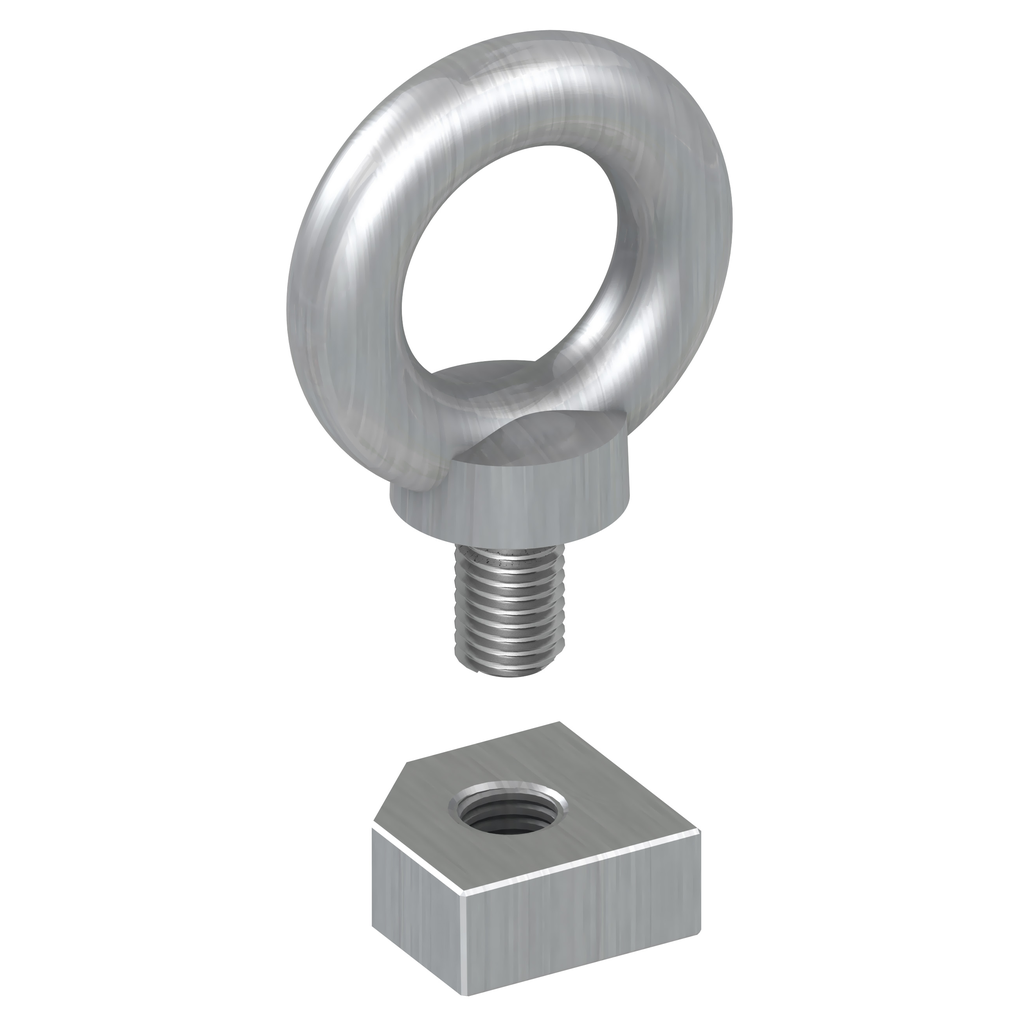

set of 4 Spacial SM M12 lifting eyebolt - galvanized cast steel
Set of M12 lifting eyebolt for Spacial SF/SFM. H is 61.5 x W is 54 x D is 26 mm. Mounting on enclosure top. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4 fixing nuts and 4 eyebolt.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | lifting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type |
|
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Spacial |
| Mounting Location | enclosure top |
| Warranty | 18 months |
| Iso Thread | M12 |
| Width | 54 mm |
| Height | 61.5 mm |
| Material | cast steel |
| Surface Finish | galvanized |
| Diameter | 29 mm |
| Depth | 26 mm |
| Fixing Mode | screwed |
| Permanent Permissible Load | 340 kg for 1 eyebolt vertical direction |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
