NSYSF20380

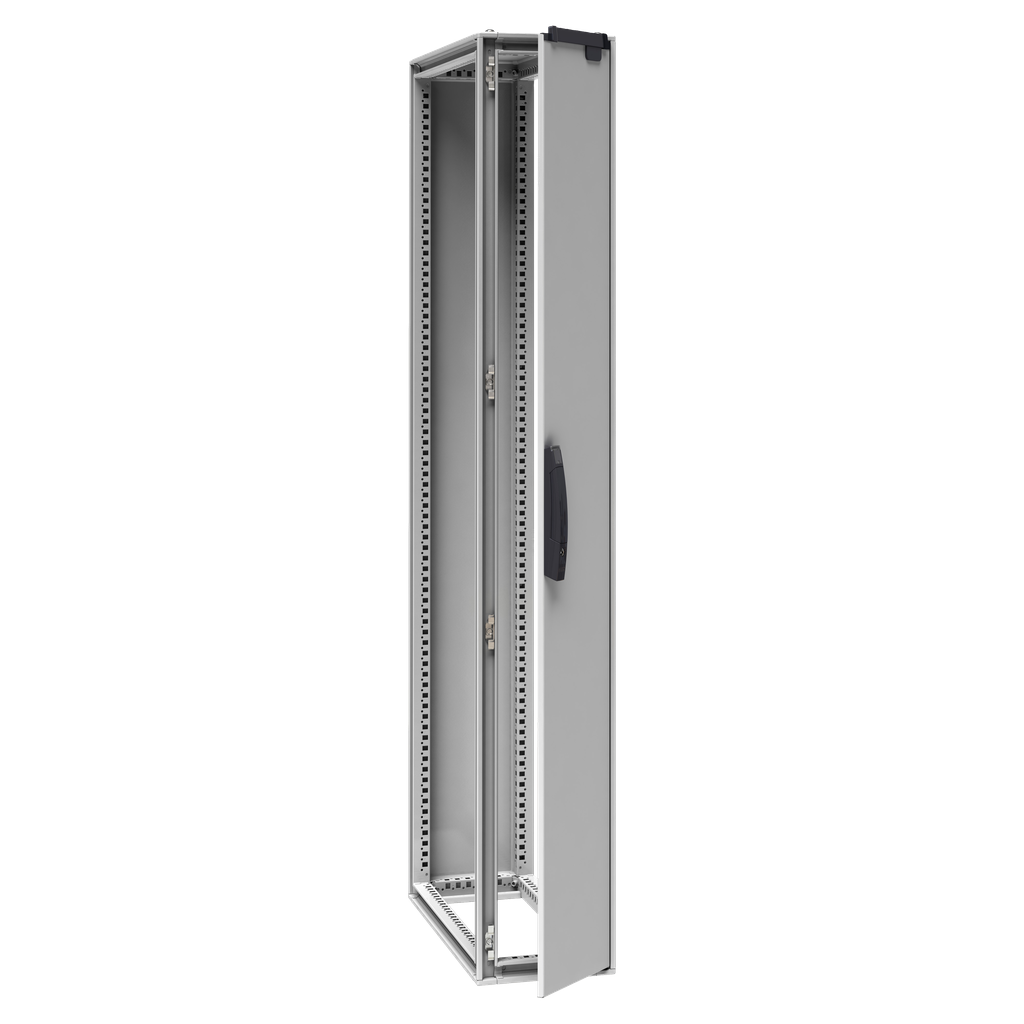

Spacial SF enclosure without mounting plate - assembled - 2000x300x800 mm
Specifications
| Enclosure Mounting | floor-standing |
|---|---|
| Product Or Component Type | suitable enclosure |
| Product Name | Spacial SF |
| Device Composition |
|
| Enclosure Nominal Height | 2000 mm |
| Enclosure Nominal Depth | 800 mm |
| Device Application |
|
| Enclosure Nominal Width | 300 mm |
| Range | Spacial |
| Warranty | 18 months |
| Accessibility For Operation |
|
| Removable Parts |
|
| Type Of Gland Plate | without gland plate |
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Color |
|
| Door Type | Solid front |
| Lock Type | 4 points lock, handle with 5 mm double bar insert front door |
| Structure Type |
|
| Net Weight | 62 kg |
| Door Opening Side | reversible 120 °) |
| Mounting Plate Description | without mounting plate |
| Number Of Doors | front 1 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Nema Degree Of Protection | NEMA 3R/12 |
| Standards | IEC 62208 |
| Ip Degree Of Protection | IP55 IEC 60529 |
