NSYS3X302515H

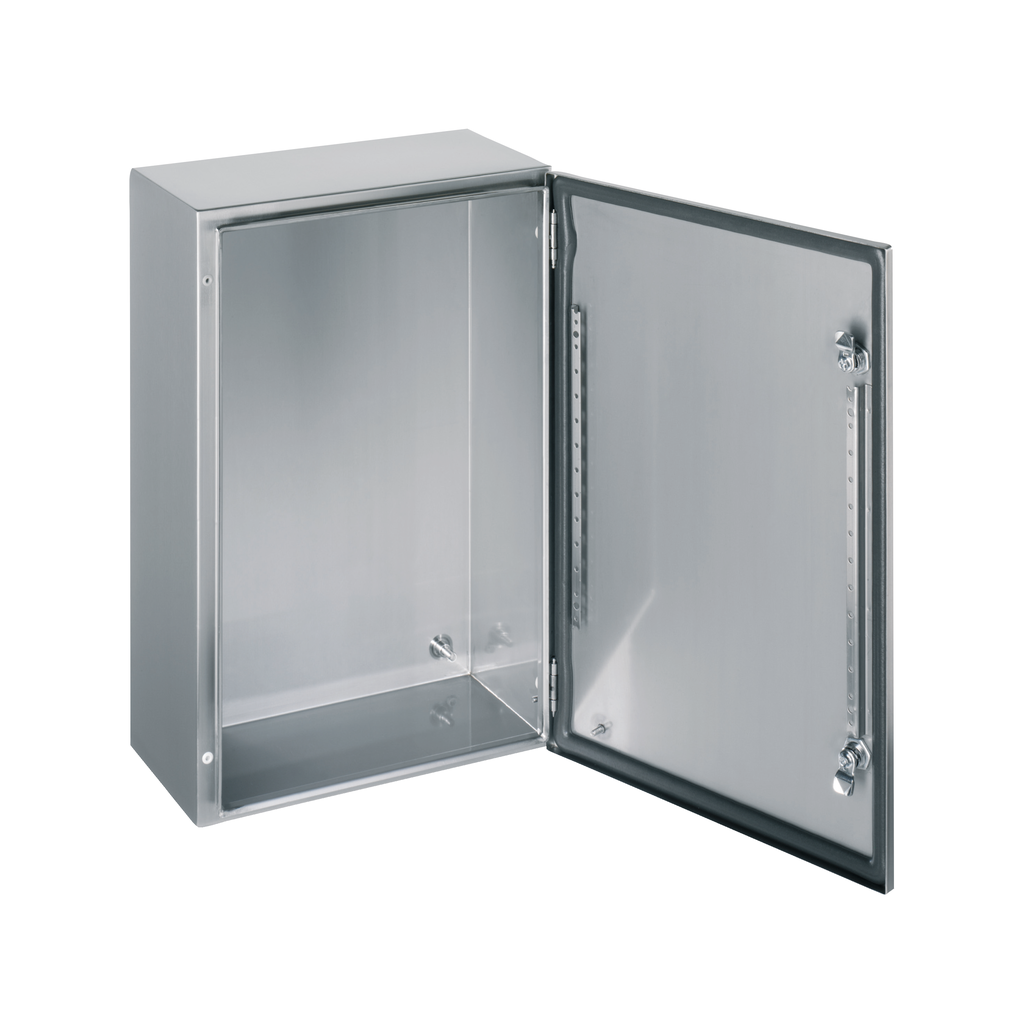

Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x250x150mm, IP66
Specifications
| Installation Accessory Type | wall-mounting |
|---|---|
| Product Or Component Type | compact enclosure |
| Product Name | Spacial S3X |
| Device Composition |
|
| Enclosure Nominal Height | 300 mm |
| Range | Spacial |
| Enclosure Nominal Depth | 150 mm |
| Device Application | multi-purpose |
| Enclosure Nominal Width | 250 mm |
| Warranty | 18 months |
| Accessibility For Operation | front |
| Removable Parts | door by hinges |
| Type Of Gland Plate | without gland plate |
| Body Type |
|
| Lock Type | 3 mm double-bar lock |
| Net Weight | 3.574 kg |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | front face 1 |
| Material |
|
| Surface Finish |
|
| Door Type | Solid |
| Mounting Plate Description | without mounting plate |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2109018EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK10 IEC 62262 |
| Standards | IEC 62208 |
| Environmental Characteristic |
|
| Ip Degree Of Protection | IP66 IEC 60529 |
