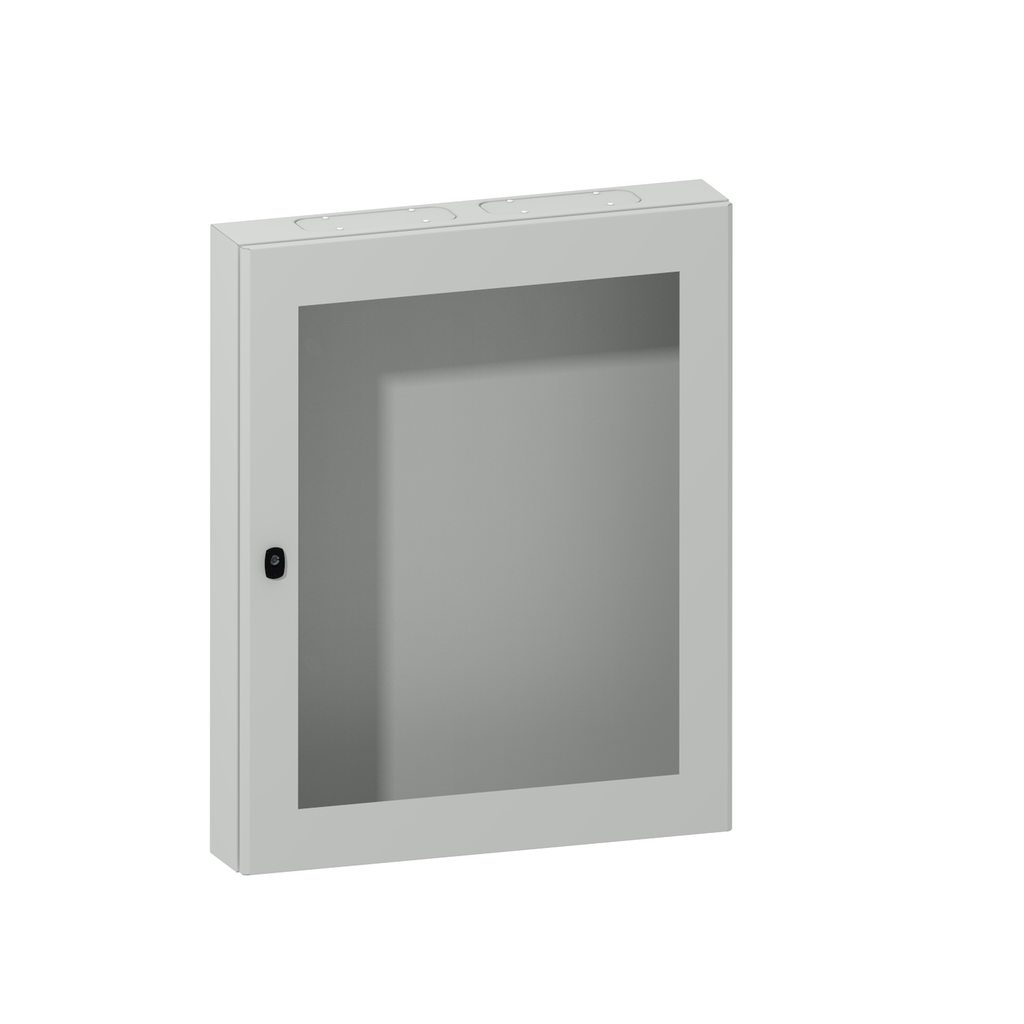

Spacial S3DM H1000xW800xD150.IP66 IK10 RAL7035. top and bottom
The Spacial S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 points lock, 3 mm double-bar lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | for installation of modular chassis DLM |
|---|---|
| Type Of Gland Plate | standard |
| Installation Accessory Type | wall-mounting |
| Product Or Component Type | compact enclosure |
| Product Name | Spacial S3DM |
| Device Composition |
|
| Enclosure Nominal Height | 1000 mm |
| Range | Spacial |
| Door Type | Glass |
| Enclosure Nominal Depth | 150 mm |
| Device Application | modular distribution application |
| Enclosure Nominal Width | 800 mm |
| Mounting Plate Description | without mounting plate |
| Warranty | 18 months |
| Product Certifications |
|
| Accessibility For Operation | front |
| Removable Parts |
|
| Standards | IEC 62208 |
| Variant Particularity |
|
| Lock Type | 3 points lock, 3 mm double-bar |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | front face 1 |
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 IEC 62262 |
| Ip Degree Of Protection | IP66 IEC 60529 |
