NSYS3DB3615
Spacial S3DB H300xW600xD150. IP66, IK10, RAL7035. No

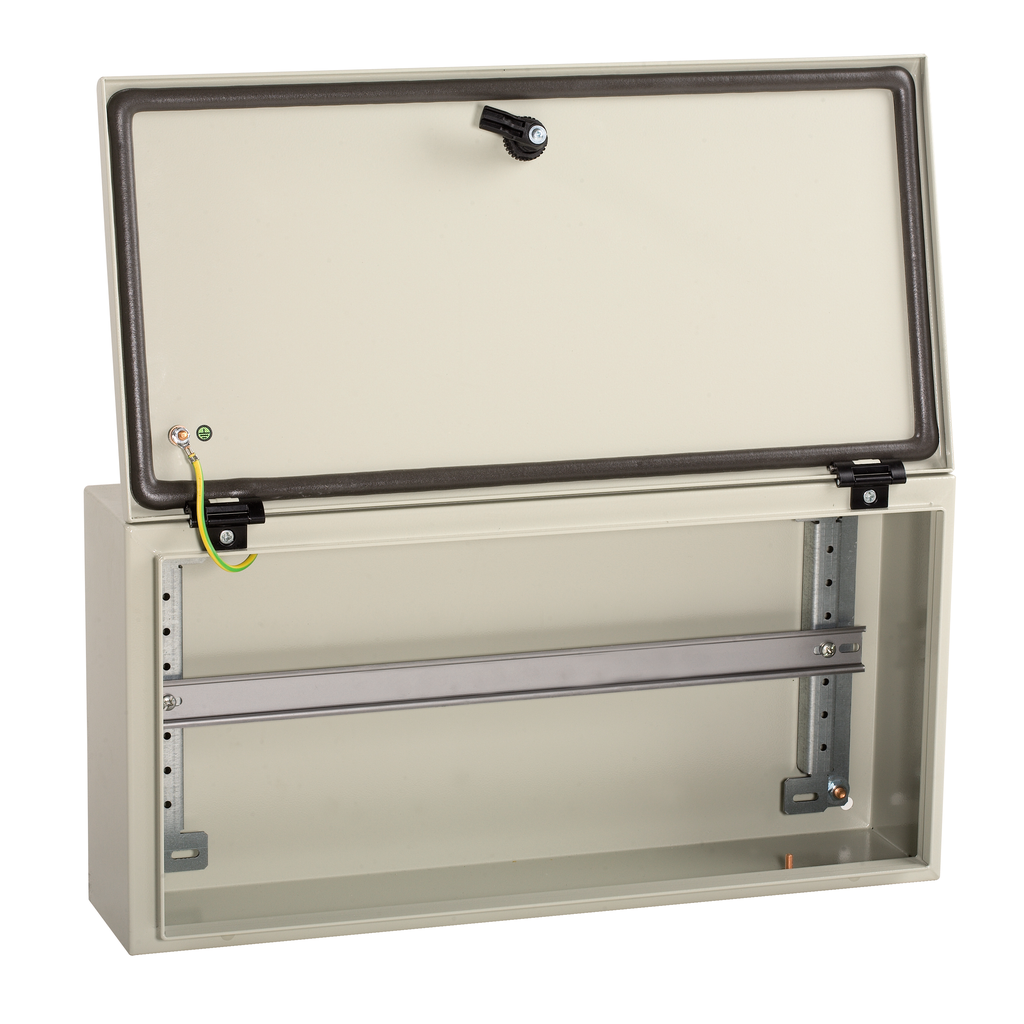

Spacial S3DB compact enclosure. H is300xW is600xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | for equipping with terminal |
|---|---|
| Type Of Gland Plate | without gland plate |
| Installation Accessory Type |
|
| Product Or Component Type | compact enclosure |
| Product Name | Spacial S3DB |
| Device Composition |
|
| Enclosure Nominal Height | 300 mm |
| Range | Spacial |
| Door Type | Solid |
| Enclosure Nominal Depth | 150 mm |
| Device Application | terminal application |
| Enclosure Nominal Width | 600 mm |
| Mounting Plate Description | without mounting plate |
| Warranty | 18 months |
| Product Certifications |
|
| Accessibility For Operation | front |
| Removable Parts | door by hinges |
| Standards | IEC 62208 |
| Variant Particularity |
|
| Lock Type | 3 mm double-bar lock |
| Net Weight | 9.88 kg |
| Door Opening Side | reversible 180 °) |
| Number Of Doors | front face 1 |
| Material | steel |
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Nema Degree Of Protection | NEMA 4X/13 |
| Ip Degree Of Protection | IP66 IEC 60529 |
