NSYRSW36

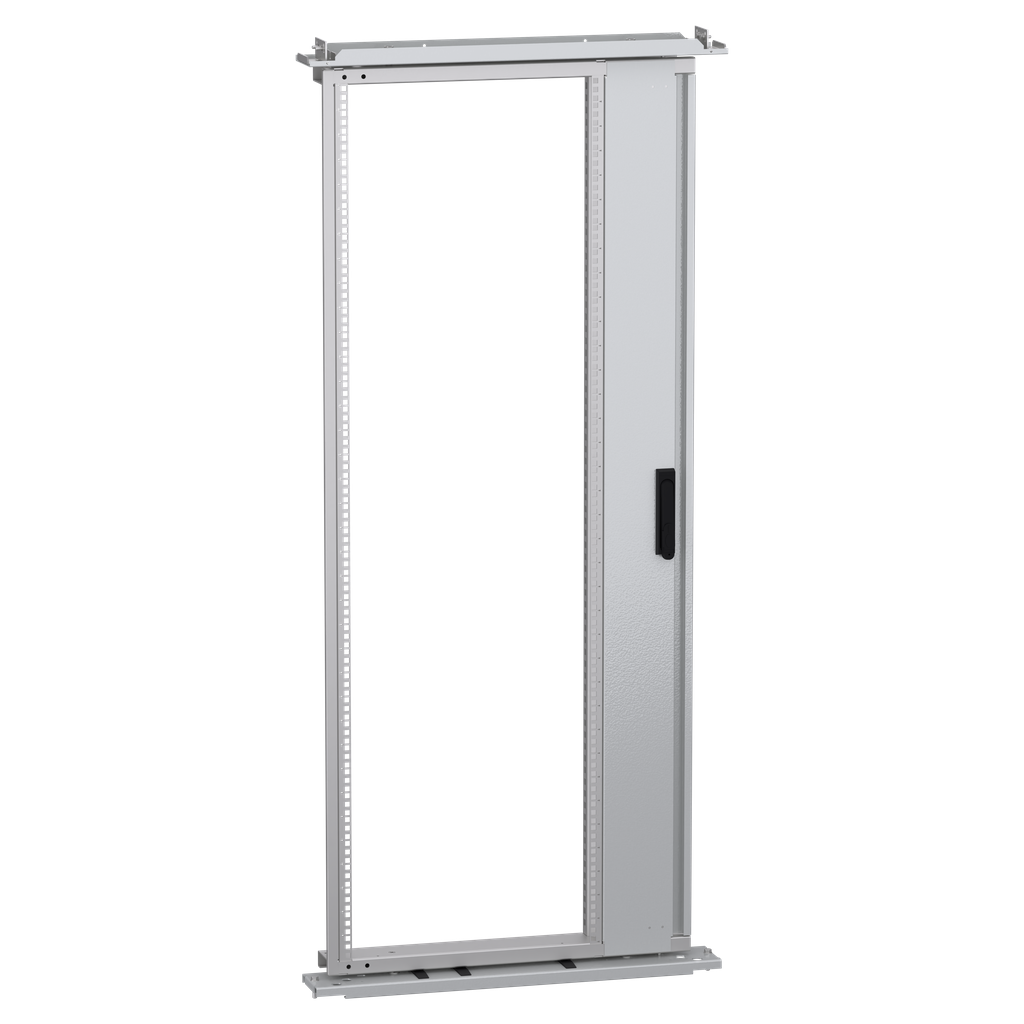

Spacial SF/SM 19" swing rack - 1800x800 mm - 36 modules
Spacial SF / SM swing rack off-centered 19 inches. 1800 x 800 mm. 36 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. Ball lock type in handle. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rack Type | swing off-centred |
|---|---|
| Enclosure Nominal Dimensions | H: 1800 mm |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | 19" rack |
| Number Of Units 19" | 36 |
| Device Composition |
|
| Device Application | electronic application |
| Range | Spacial |
| Mounting Location | on structure of enclosure |
| Warranty | 18 months |
| Adjustment | adjustable in depth every 25 mm |
| Width | 800 mm |
| Height | 1800 mm |
| Fixing Mode | by fixing element |
| Material | steel |
| Surface Finish | zinc coated |
| Opening Of The 19" Racks | reversible 120 ° |
| Color | side plate Gray RAL 7035) |
| Lock Type | handle with ball lock |
| Depth | 1701 mm |
| Permanent Permissible Load | 3.75 kg per unit with a maximum of 150 kg |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
