NSYRCKP26

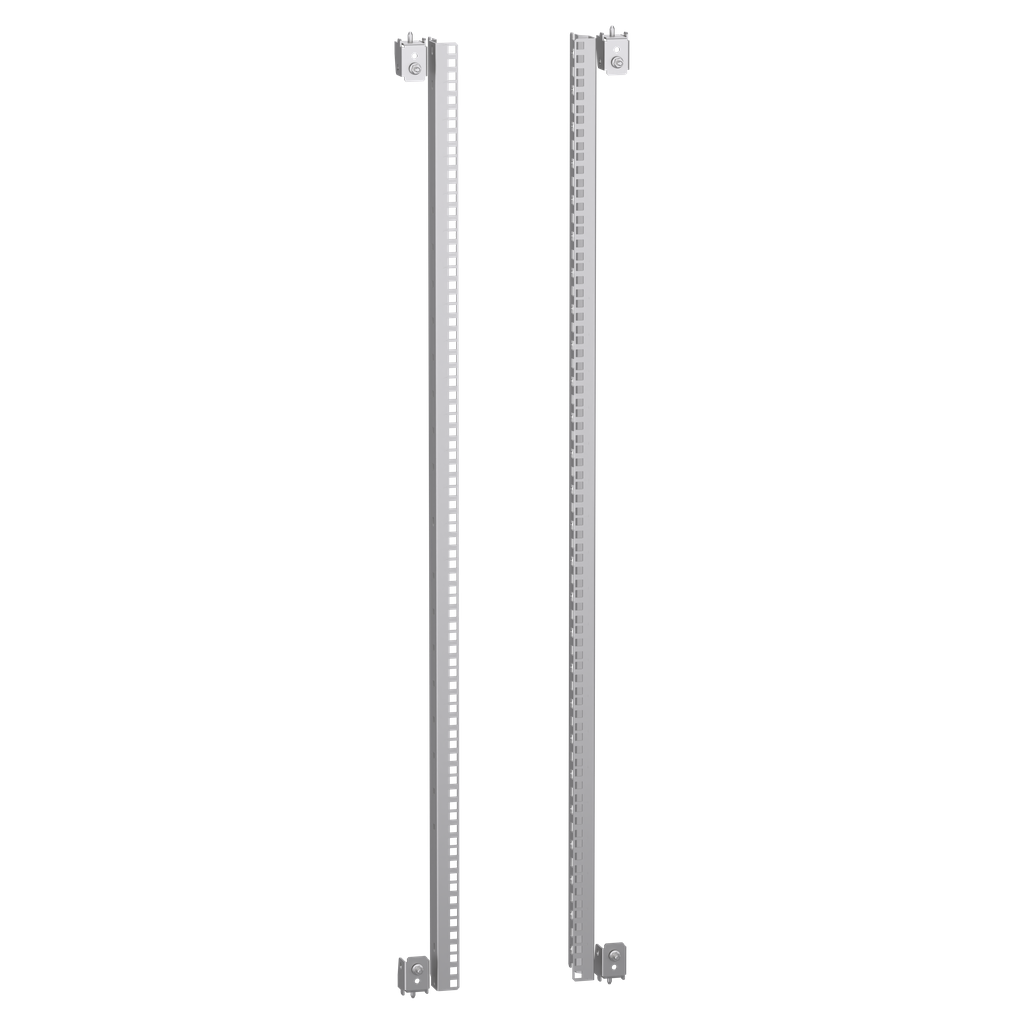

Spacial SF/SM partial 19" fixed rack - 1200 mm
Spacial SF / SM partial fixed rack 19 inches. Enclosure width is 1200 mm. 26 Units of 19 inch. Electronic application. Mounting accessory. Cross rails mounting support. Mounting on top front of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 2 kg per unit. 7 uprights and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rack Type | partial fixed |
|---|---|
| Enclosure Nominal Dimensions | H: 1200 mm |
| Mounting Support | cross rails |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | 19" rack |
| Number Of Units 19" | 26 |
| Device Composition |
|
| Device Application | electronic application |
| Range | Spacial |
| Mounting Location | top front of enclosure |
| Warranty | 18 months |
| Adjustment | adjustable in depth every 25 mm |
| Height | 1200 mm |
| Fixing Mode | by fixing element |
| Material | steel |
| Surface Finish | zinc coated |
| Depth | 45 mm |
| Permanent Permissible Load | 2 kg per unit |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
