NSYRCK42

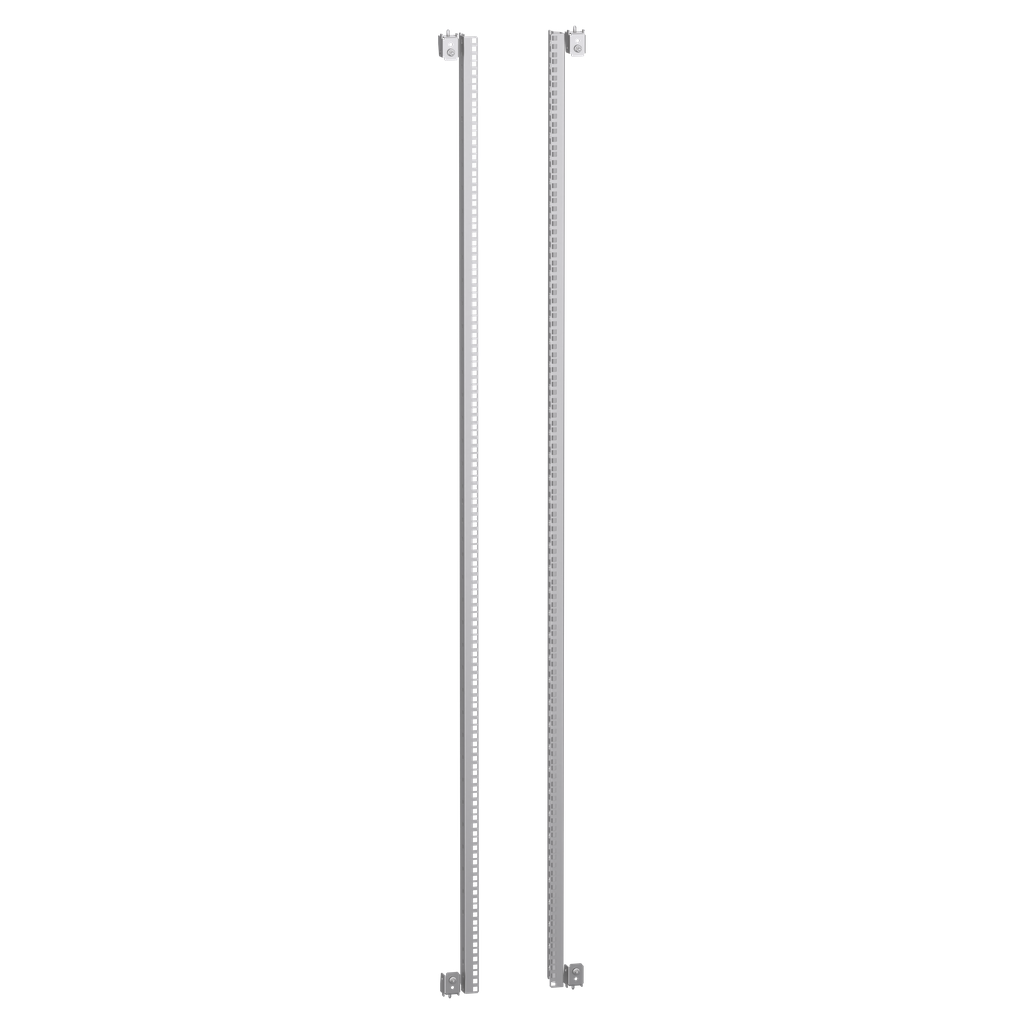

Spacial SF/SM 19" fixed rack - 2000 mm
Spacial SF / SM fixed rack 19 inches. Enclosure width is 2000 mm. 42 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 2 uprights and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rack Type | fixed |
|---|---|
| Enclosure Nominal Dimensions | H: 2000 mm |
| Mounting Support | 19" fixed support bracket |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | 19" rack |
| Number Of Units 19" | 42 |
| Device Composition |
|
| Device Application | electronic application |
| Range | Spacial |
| Mounting Location | on structure of enclosure |
| Warranty | 18 months |
| Adjustment | adjustable in depth every 25 mm |
| Height | 2000 mm |
| Fixing Mode | by fixing element |
| Material | steel |
| Surface Finish | zinc coated |
| Depth | 45 mm |
| Permanent Permissible Load | 400 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Spacial SF and SM - 19" fixed rack - 7313070001 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
- Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures - UE14MK01EN+(web) (pdf)
