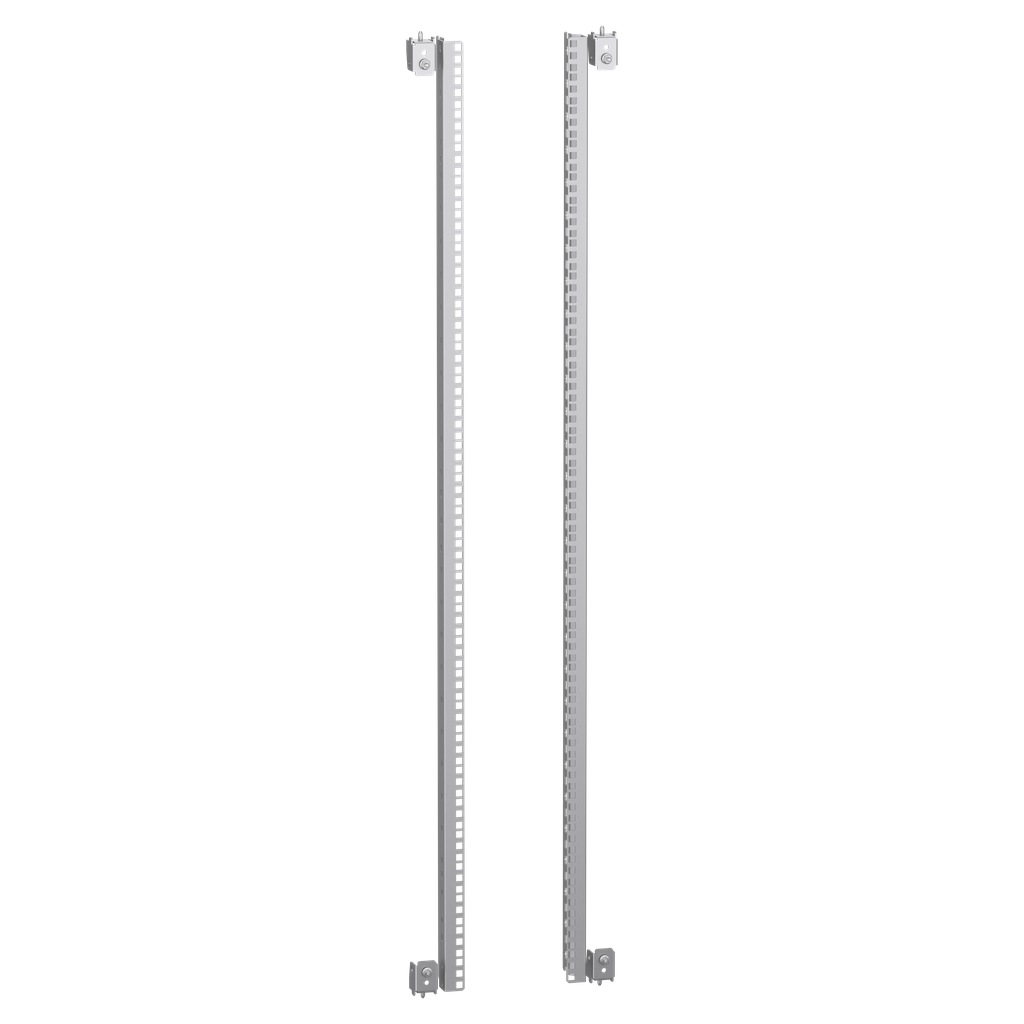

Spacial SF / SM fixed rack 19 inches. Enclosure width is 1400 mm. 29 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 2 uprights and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueRack Type | fixed |
---|---|
Enclosure Nominal Dimensions | H: 1400 mm |
Mounting Support | 19" fixed support bracket |
Range Compatibility |
|
Accessory / Separate Part Category | mounting accessory |
Product Or Component Type | 19" rack |
Device Composition |
|
Range | Spacial |
Mounting Location | on structure of enclosure |
Quantity Per Set | set of 1 |
Number Of Units 19" | 29 |
Device Application | electronic application |
Warranty | 18 months |
Adjustment | adjustable in depth every 25 mm |
Fixing Mode | by fixing element |
Surface Finish | zinc coated |
Depth | 120 mm |
Permanent Permissible Load | 400 kg |
Height | 1400 mm |
Material | steel |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110923EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
