NSYPUNX

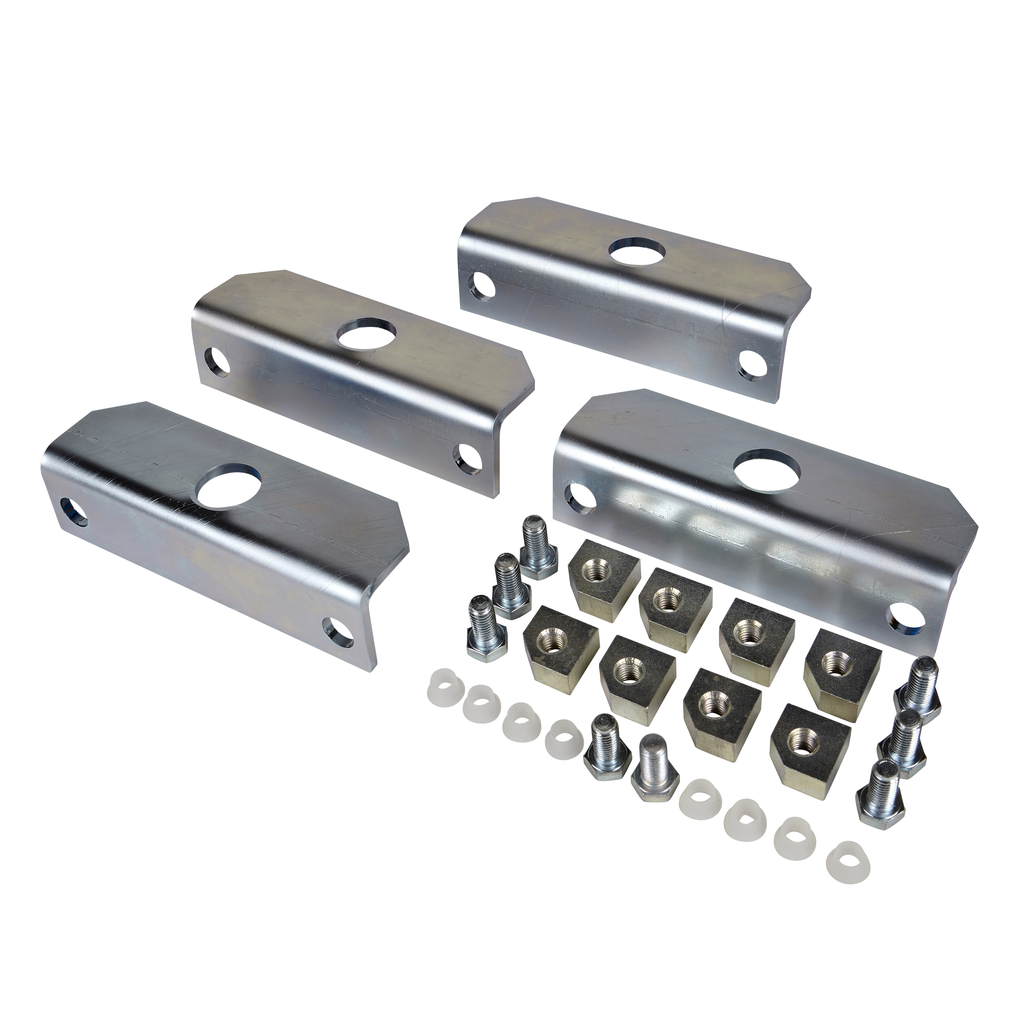

4 lifting brackets for Spacial SFX enclosure. Max. load 2000kg
Specifications
| Mounting Support | directly in the axis of the uprights |
|---|---|
| Range Compatibility | Spacial (Spacial SFX) |
| Accessory / Separate Part Category | lifting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | lifting bracket |
| Device Composition | 4 bracket |
| Device Application | multi-purpose |
| Range | Spacial |
| Mounting Location | enclosure top |
| Warranty | 18 months |
| Material | treated steel |
| Net Weight | 4.96 kg |
| Fixing Mode | by screws M12 |
| Permanent Permissible Load | 2000 kg slinging at 60° |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Universal Enclosures Brochure - Overview6-page+(1) (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
