NSYPTZ42P
adaptor plates for vers.PLAZorZT D420mm 2doors mounting NSYPAPL/DPLA/DLP/BRF/BRP

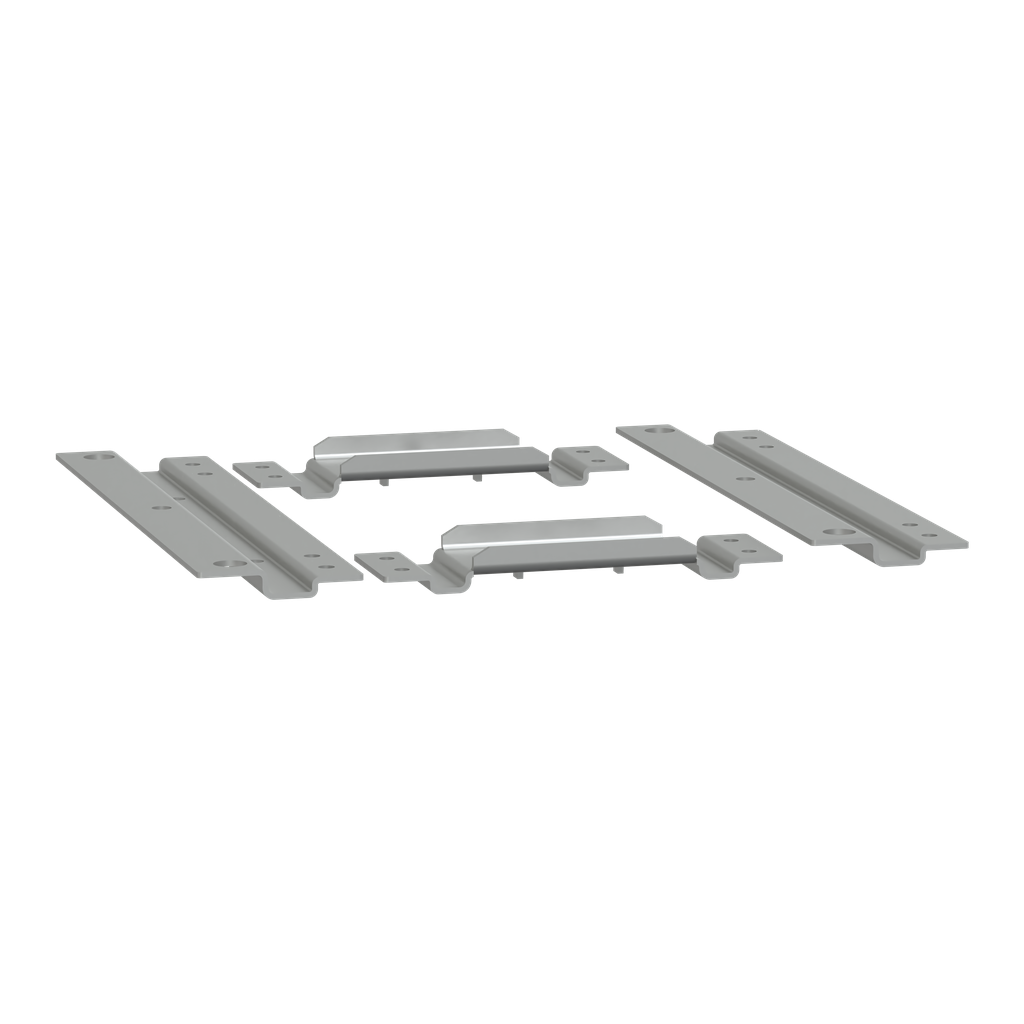

Thalassa PLA/PLAZT Adaptor plates 2 doors mounting. D is 420 mm. NSYPAPL/DPLA/DLP/BRF/BRP compatible. Mounting on 2-door enclosure bottom. Fixing by screw and insert (type M8). Galvanised Steel. fixing elements, 2 plates, 2 intermediate supports incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Enclosure Nominal Dimensions | D: 420 mm |
|---|---|
| Range Compatibility | Thalassa (Thalassa PLA) |
| Material | galvanised steel |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | adapter plate |
| Device Composition |
|
| Device Application | multi-purpose |
| Mounting Location | 2-door enclosure bottom |
| Warranty | 18 months |
| Width | 400 mm |
| Height | 20 mm |
| Depth | real 420 mm |
| Fixing Mode | screw and insert M8 - bottom of enclosure |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
