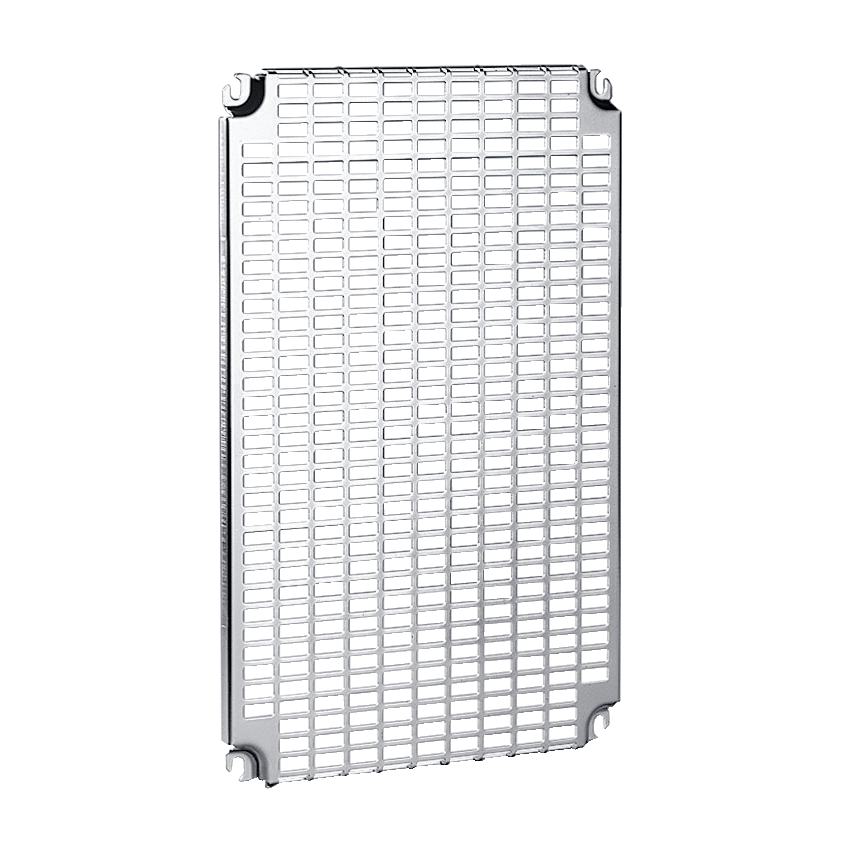

NSYPMR157
Telequick mounting plate for PLA enclosure H1500xW750mm
Specifications
| Range Compatibility |
|
|---|---|
| Material | galvanised steel |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | mounting plate |
| Device Composition | 1 mounting plate |
| Device Application | multi-purpose |
| Mounting Plate Description | Telequick perforated |
| Range | Thalassa |
| Mounting Location |
|
| Warranty | 18 months |
| Cut-Out Dimensions | 11 x 26 mm |
| Width |
|
| Height |
|
| Depth | real 15 mm |
| Fixing Mode | by screws M8 - on back inserts |
| Permanent Permissible Load | 150 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures - UE14MK01EN+(web) (pdf)
- Universal Enclosures - Quick Selection Guide (2023 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
