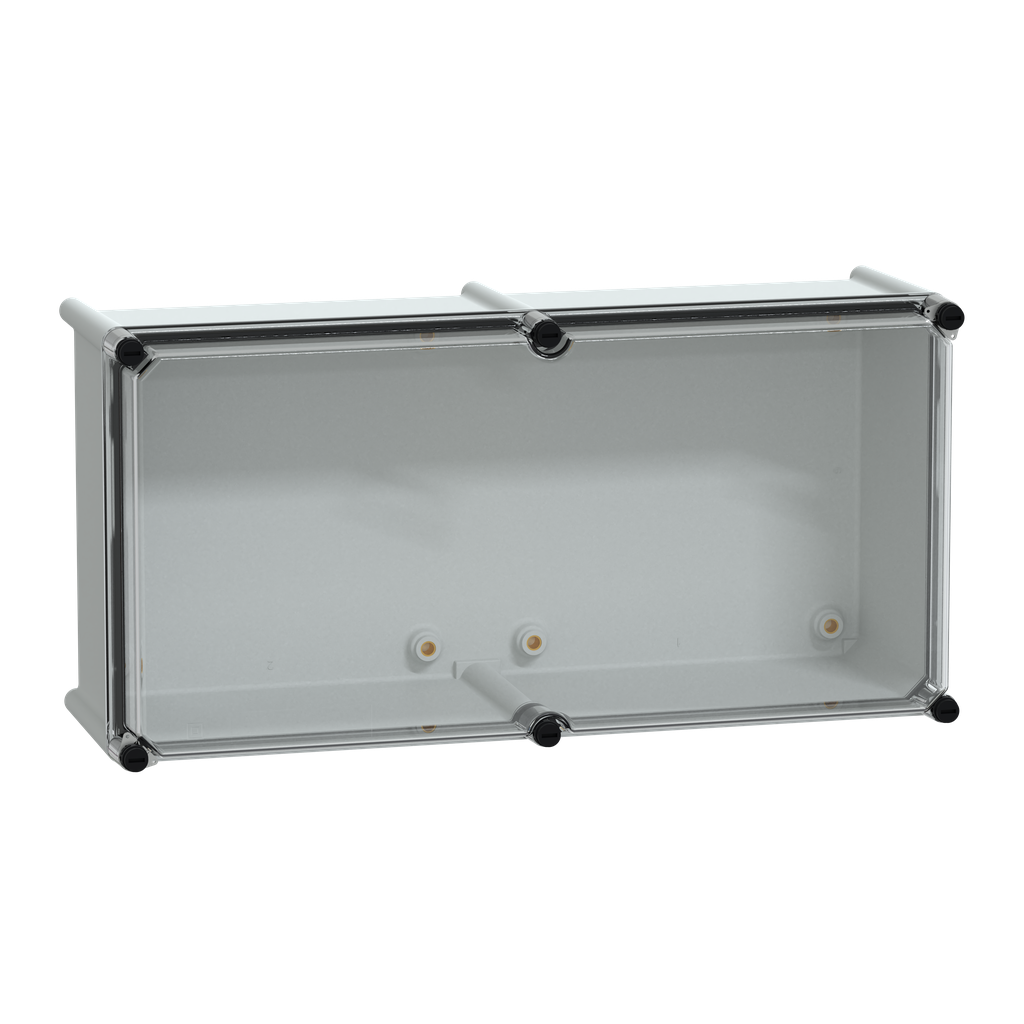

Thalassa PLS box polyester rear with transparent PC cover. 270 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | insulating modular box |
---|---|
Product Name | Thalassa PLS |
Device Composition |
|
Enclosure Nominal Height | 270 mm |
Type Of Front Cover | low transparent cover |
Lock Type | slot screw |
Range | Thalassa |
Body Type | one piece moulded |
Enclosure Mounting | wall mounted |
Enclosure Nominal Depth | 180 mm |
Device Application | multi-purpose |
Device Short Name | PLS |
Enclosure Nominal Width | 540 mm |
Product Certifications | UL |
Removable Parts | cover locking screw |
Standards |
|
Material |
|
Color | body Gray RAL 7035) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110704EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK09 IEC 62262 |
Electrical Insulation Class | class II |
Ambient Air Temperature For Storage | -30-70 °C |
Ip Degree Of Protection | IP66 IEC 60529 |
Fire Resistance | 960 °C IEC 62208 |
