NSYPLM86VG

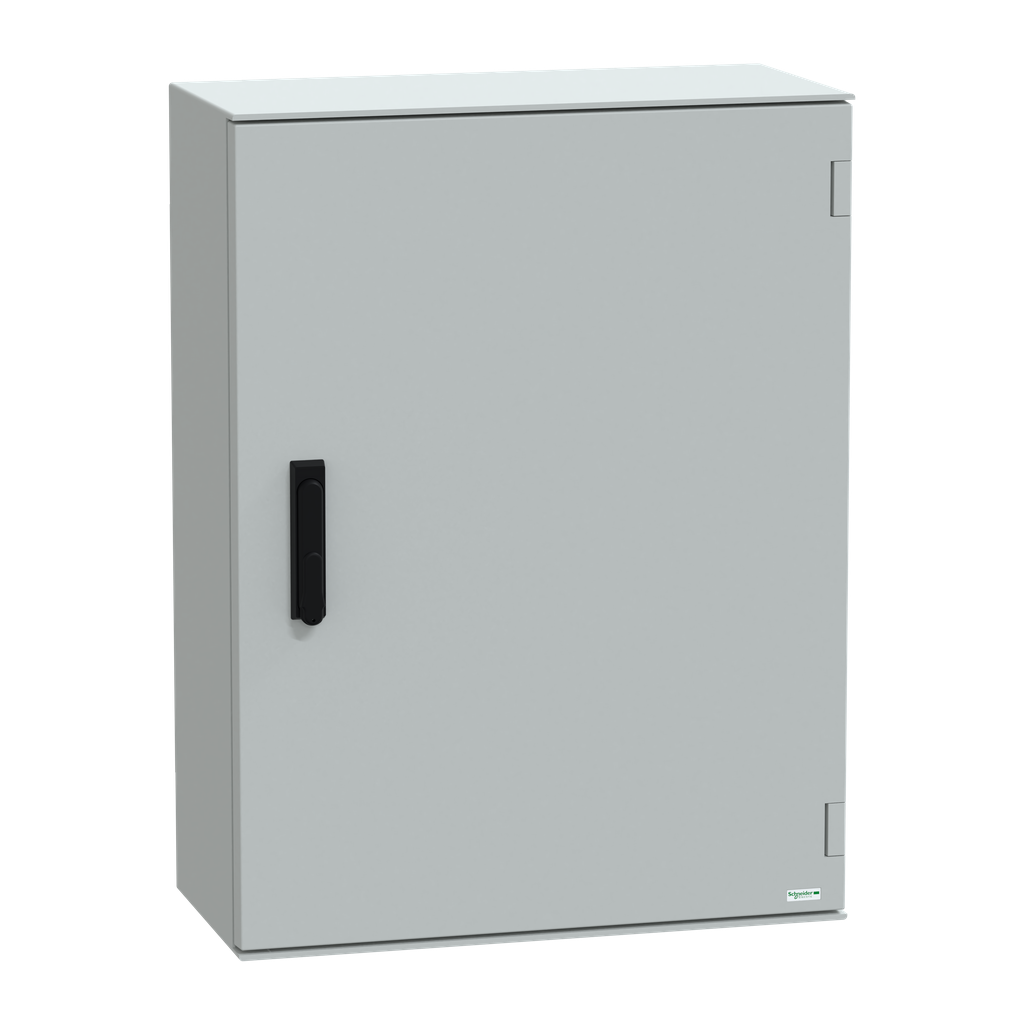

Wall mounted polyester enclosure, Thalassa PLM, plain door, with handle, 847x636x300mm, IP66, IK10, RAL 7035
Thalassa PLM wall-mounting polyester enclosure monobloc. 847 x 636 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | compact enclosure |
|---|---|
| Product Name | Thalassa PLM |
| Device Composition |
|
| Enclosure Nominal Height | 847 mm |
| Lock Type | 3 points lock, handle with 1242E key lock |
| Range | Thalassa |
| Enclosure Mounting | wall mounted |
| Door Type | Solid |
| Enclosure Nominal Depth | 300 mm |
| Device Application | multi-purpose |
| Device Short Name | PLM |
| Enclosure Nominal Width | 636 mm |
| Product Certifications | UL |
| Accessibility For Operation | front |
| Mounting Plate Description | without mounting plate |
| Removable Parts | door by hinges |
| Number Of Locks | 1 |
| Standards |
|
| Electrical Insulation Class | class II |
| Material | polyester reinforced with fibreglass |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Ambient Air Temperature For Operation | -40-80 °C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Fire Resistance | 960 °C IEC 62208 |
Documents
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2023 EN) - UEMKCAT034EN_(web) (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Thalassa Polyester Enclosures Brochure - Thalassa (pdf)
- Rittal Competitive Cross References Brochure - Rittal+Cross+2-19 (pdf)
- instruction sheet for PLM43 /54 /64 /75 /86 - NHA4687301-00 (pdf)
