Landscape (Horizontal) enclosure polyester monobloc IP66 H536xW747xD300mm

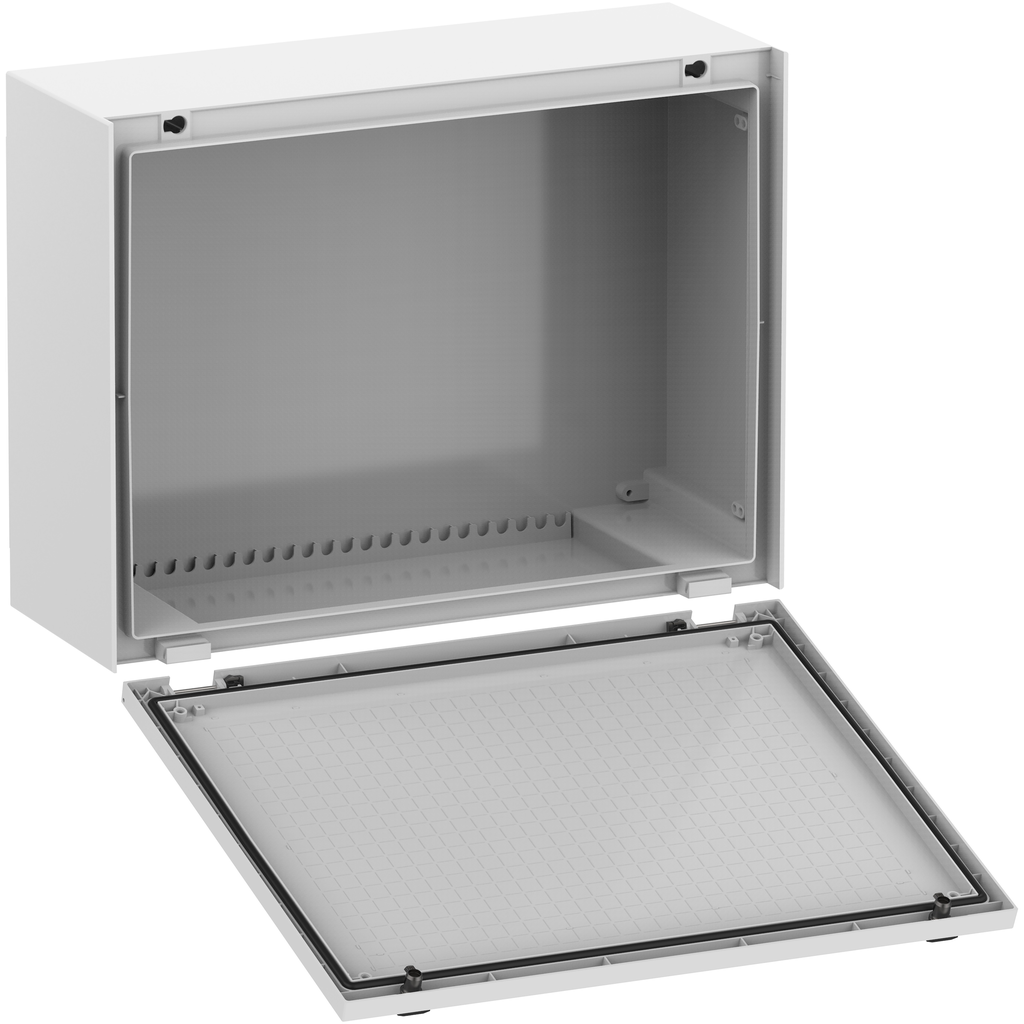

The Thalassa PLM landscape compact enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). This compact enclosure is composed of body, door, lock. Featuring a removable door by cut hinges, comes without mounting plate. Has a built-in canopy, one piece moulded with notches in the rear. The compact enclosure is made of polyester reinforced with fibreglass, making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 747 mm x (H) 536 mm x (D) 300 mm. The door type is plain, and the door opening side is down. Equipped with two 3 mm double-bar lock lock type. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. This device is qualified as a green premium product, with minimal use of hazardous substances.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Installation Direction | horizontal |
|---|---|
| Enclosure Mounting | wall mounted |
| Body Type |
|
| Product Or Component Type | compact enclosure |
| Product Name | Thalassa PLM landscape |
| Device Composition |
|
| Enclosure Nominal Height | 536 mm |
| Lock Type | 3 mm double-bar lock |
| Door Type | Solid |
| Enclosure Nominal Depth | 300 mm |
| Device Application | multi-purpose |
| Device Short Name | PLM |
| Enclosure Nominal Width | 747 mm |
| Door Opening Side | down |
| Range | Thalassa |
| Product Certifications |
|
| Accessibility For Operation | front |
| Mounting Plate Description | without mounting plate |
| Electrical Insulation Class | class II |
| Removable Parts | door by cut hinges |
| Number Of Locks | 2 |
| Standards |
|
| Material | polyester reinforced with fibreglass |
| Color | Gray RAL 7035) |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Ambient Air Temperature For Operation | -40-80 °C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Fire Resistance | 960 °C IEC 62208 |
