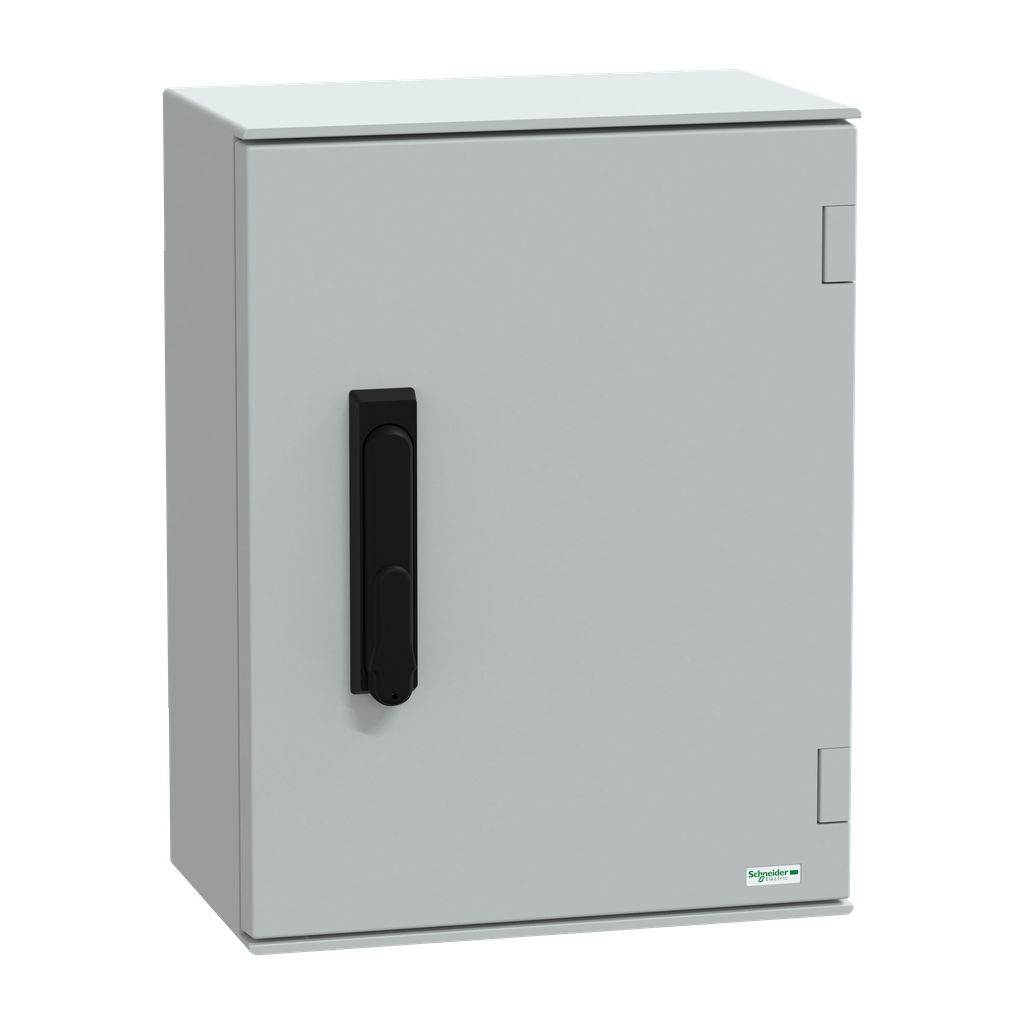

Thalassa PLM wall-mounting polyester enclosure monobloc. 430 x 330 x 200 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | compact enclosure |
---|---|
Product Name | Thalassa PLM |
Device Composition |
|
Enclosure Nominal Height | 430 mm |
Lock Type | 3 points lock, handle with 1242E key lock |
Range | Thalassa |
Enclosure Mounting | wall mounted |
Door Type | Solid |
Enclosure Nominal Depth | 200 mm |
Device Application | multi-purpose |
Device Short Name | PLM |
Enclosure Nominal Width | 330 mm |
Product Certifications | UL |
Accessibility For Operation | front |
Mounting Plate Description | without mounting plate |
Removable Parts | door by hinges |
Number Of Locks | 1 |
Standards |
|
Electrical Insulation Class | class II |
Material | polyester reinforced with fibreglass |
Color | Gray RAL 7035) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110118EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK10 IEC 62262 |
Ambient Air Temperature For Operation | -40-80 °C |
Ip Degree Of Protection | IP66 IEC 60529 |
Fire Resistance | 960 °C IEC 62208 |
