Product Or Component Type | suitable enclosure |
---|---|

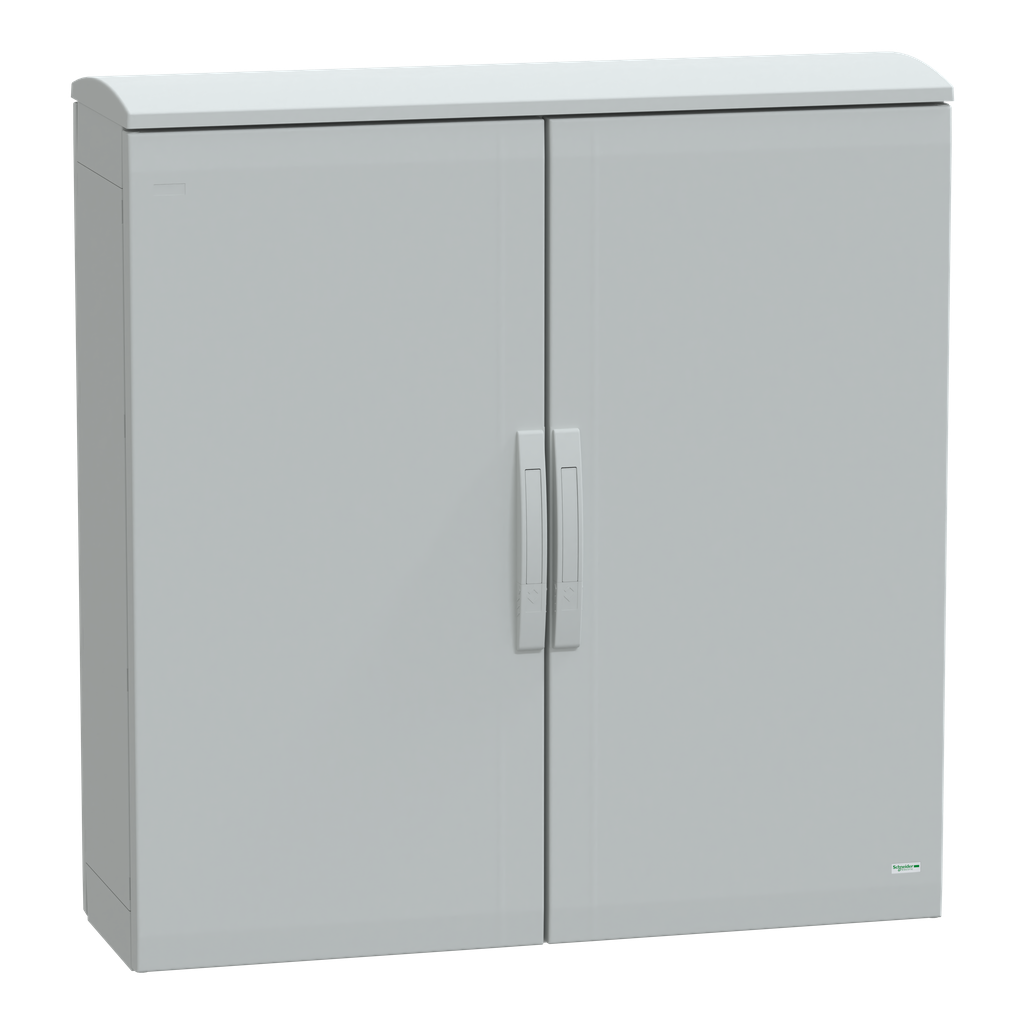

Product Name | Thalassa PLA |
Device Composition |
|
Enclosure Nominal Height | 1000 mm |
Range | Thalassa |
Enclosure Mounting | floor-standing |
Enclosure Nominal Depth | 320 mm |
Device Application | multi-purpose |
Device Short Name | PLAT |
Enclosure Nominal Width | 1000 mm |
Product Certifications | Veritas |
Accessibility For Operation |
|
Removable Parts |
|
Standards | IEC 62208 |
Door Type | Solid front |
Lock Type | 4 points lock, handle with 5 mm double bar insert |
Door Opening Side | right and left 120 °) |
Number Of Doors | 2 |
Electrical Insulation Class | class II |
Body Type | open top and sealed bottom part assembled with side parts |
Material | polyester reinforced with fibreglass |
Color | Gray RAL 7035) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110505EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK10 IEC 62262 plain door) |
Ambient Air Temperature For Storage | -35-90 °C |
Ip Degree Of Protection | IP44 IEC 60529 with ventilated canopy) |
Fire Resistance | 960 °C IEC 62208 |
