NSYPFXPLM
set of 4 stainless steel wall mounting lugs for PLM3025 to 108

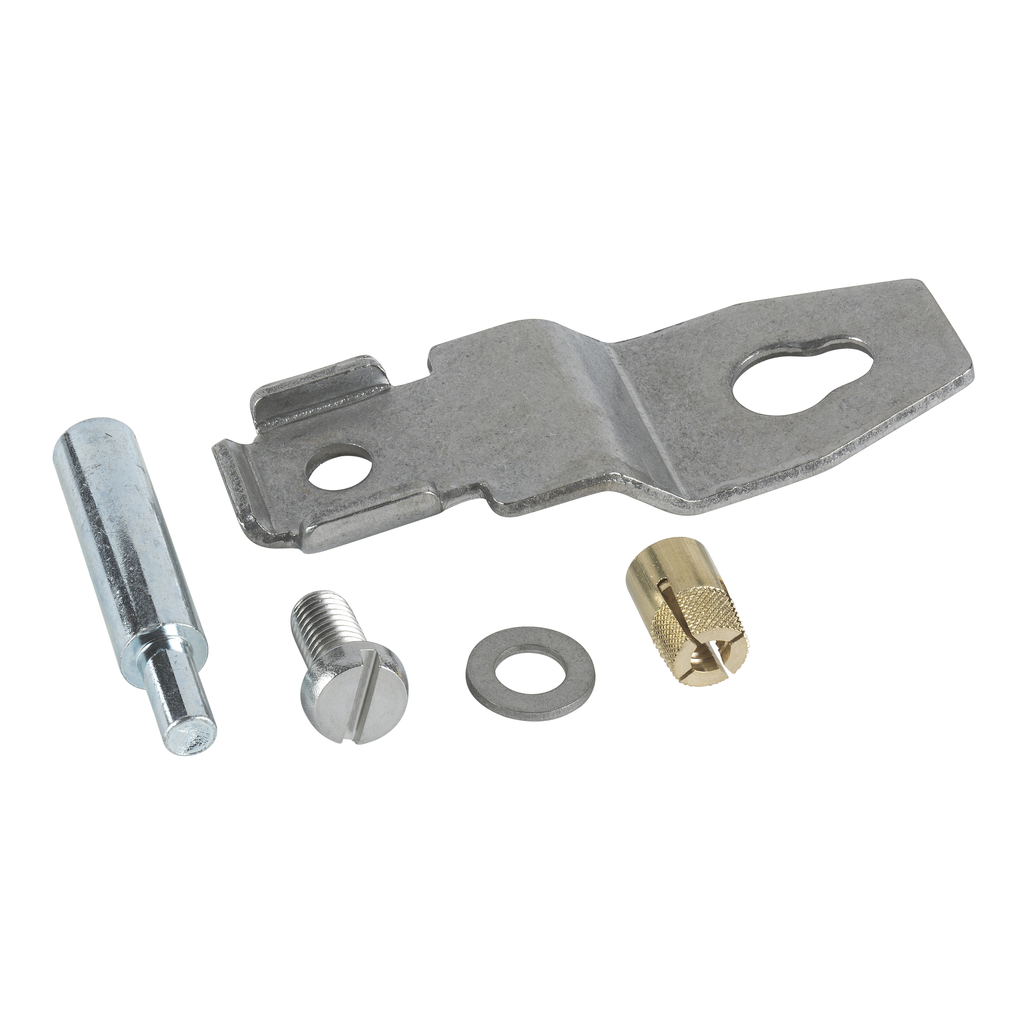

Thalassa PLM set of 4 stainless steel wall mounting lugs for PLM3025 to 108. Multi purpose. 40 x 155 x 80 mm. Wall fixing support. Mounting by Top and bottom, on rear of the enclosure. Made in stainless steel. Fixing by screwed from the outside location.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | Thalassa (Thalassa PLM) |
|---|---|
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | wall fixing support |
| Device Composition |
|
| Range | Thalassa |
| Mounting Location | top and bottom, on rear of the enclosure |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Depth | 80 mm |
| Fixing Mode | screwed - from the outside |
| Permanent Permissible Load |
|
| Width | 155 mm |
| Height | 40 mm |
| Material | stainless steel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Spec Sheet
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Quick Selection Guide (2023 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
- instruction sheet for PLM43 /54 /64 /75 /86 - NHA4687301-00 (pdf)
