NSYPFPLMG

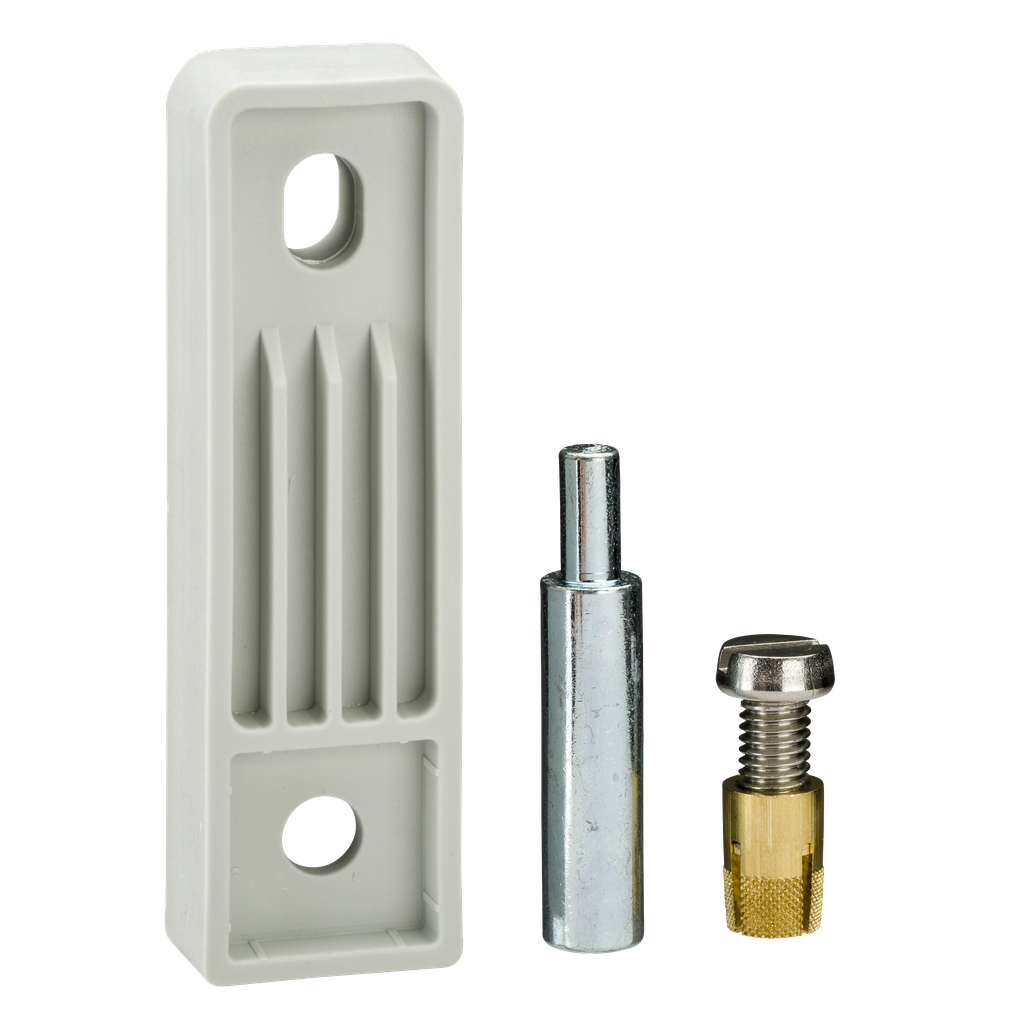

set of 4 polyamid wall mounting lugs for PLM3025 to 108
Thalassa PLM3025 to 108 Set of 4 polyamide wall mounting lugs. . Multi-purpose application. Mounting on top and bottom, on rear of enclosure. Permanent permissible load is 200 kg vertical, 100 kg horizontal position. polyamide 6 with 30 % fibre glass. Grey RAL 7035.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | Thalassa (Thalassa PLM) |
|---|---|
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | wall fixing support |
| Device Composition |
|
| Range | Thalassa |
| Mounting Location | top and bottom, on rear of the enclosure |
| Device Application | multi-purpose |
| Fixing Mode | screwed - from the outside |
| Permanent Permissible Load |
|
| Width |
|
| Height |
|
| Material | polyamide 6 with 30 % fibre glass |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
