NSYPFPLM32G

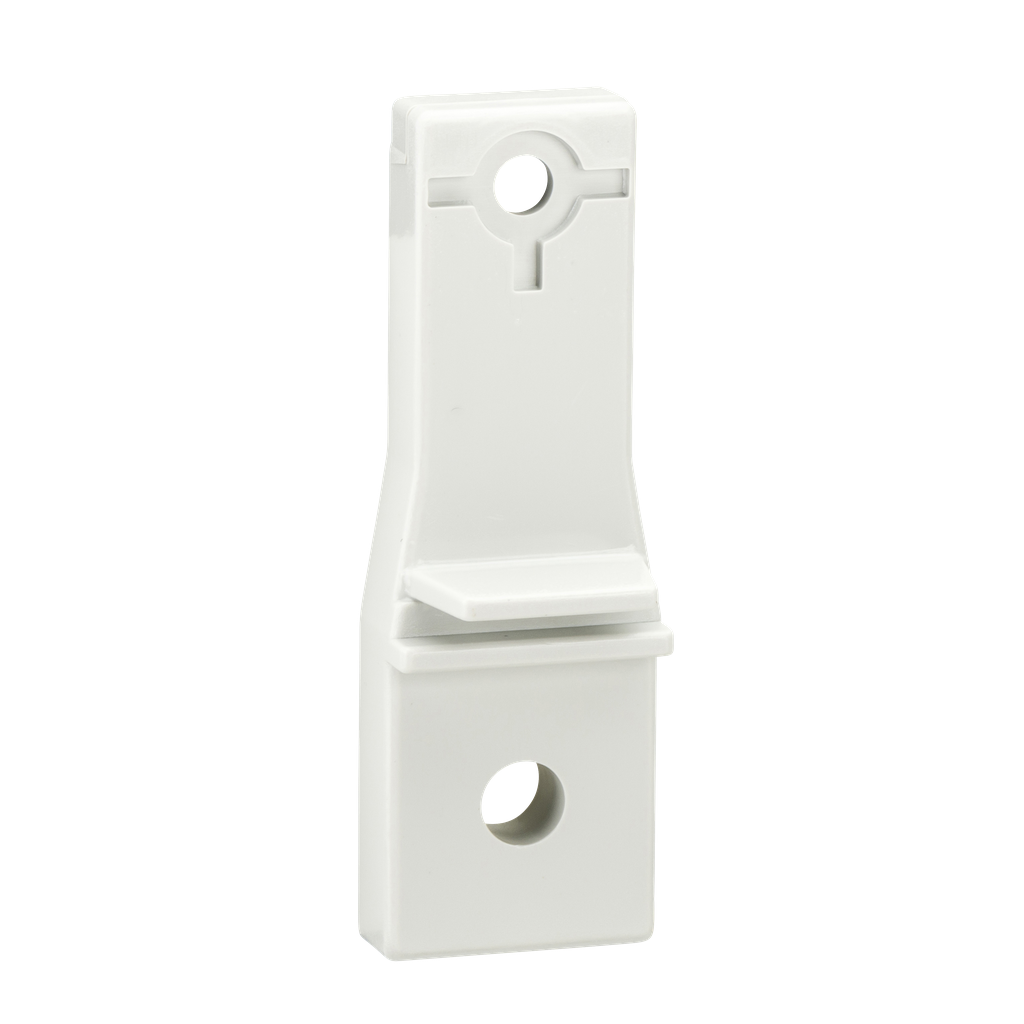

set of 4 polyamid wall mounting lugs for PLM32
Thalassa PLM32 Set of 4 polyamide wall mounting lugs. . Multi-purpose application. Mounting on top and bottom, on rear of enclosure. Permanent permissible load is 200 kg vertical, 100 kg horizontal position. polyamide 6 with 30 % fibre glass. Grey RAL 7035.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | Thalassa (Thalassa PLM) |
|---|---|
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | wall fixing support |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Thalassa |
| Mounting Location | top and bottom, on rear of the enclosure |
| Length | 160 mm |
| Width | 215 mm |
| Height | 310 mm |
| Material | polyamide 6 with 30 % fibre glass |
| Color | Gray RAL 7035) |
| Fixing Mode | screwed - from the outside |
| Permanent Permissible Load |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Documents
- Spec Sheet
- Thalassa Polyester Enclosures Brochure - Thalassa (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Quick Selection Guide (2023 EN) - UEMKCAT034EN_(web) (pdf)
- Thalassa PLM General Instruction for wall-mounting enclosure ABS/PC monobloc - NHA4686201-00 (pdf)
