NSYMR55

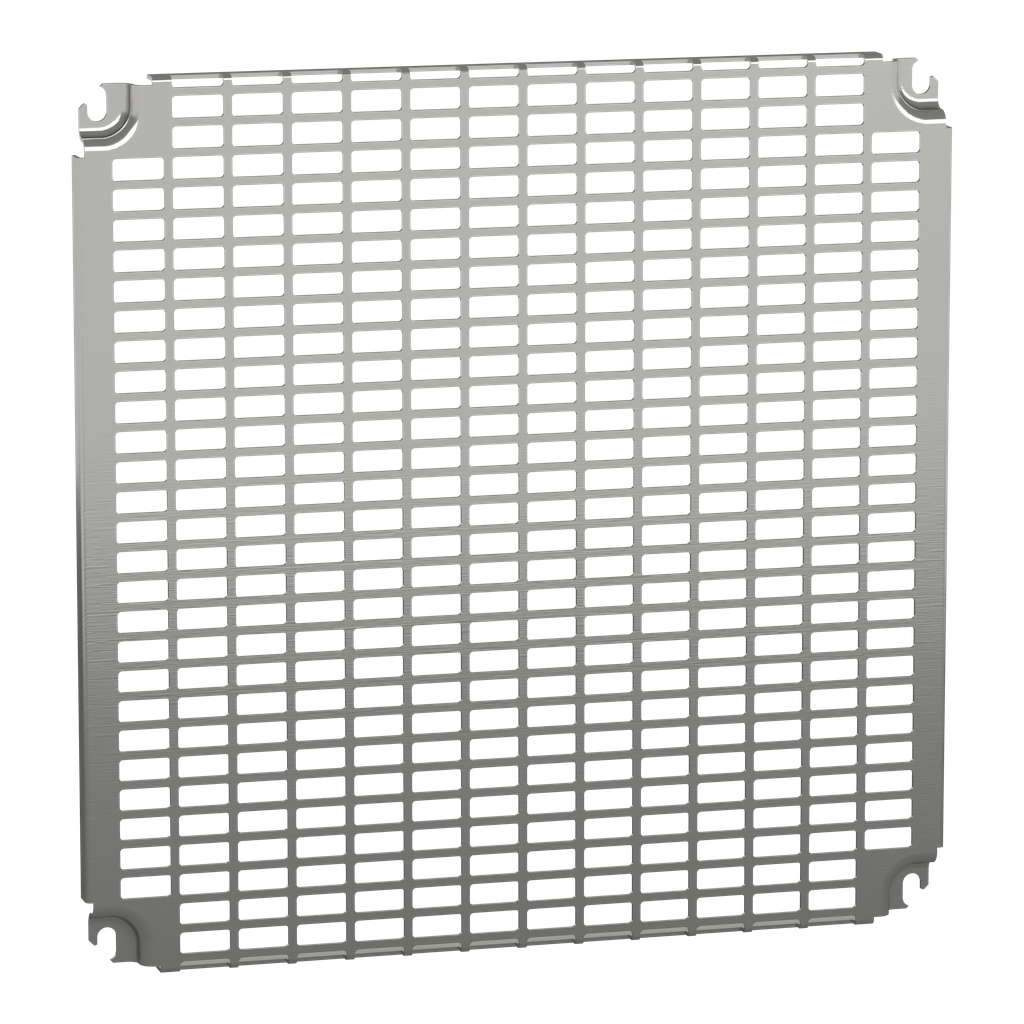

Monobloc perforated plates H500xW500mm with universal perforations 11x26mm
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is500 x W is500 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 434 slots. Variant particularity is Installation in rear of enclosure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Enclosure Nominal Dimensions | H: 500 mm W: 500 mm |
|---|---|
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Surface Finish | zinc coated |
| Product Or Component Type | mounting plate |
| Range | Spacial |
| Mounting Location |
|
| Material | steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Mounting Plate Description | Telequick perforated |
| Warranty | 18 months |
| Variant Particularity | installation in rear of enclosure |
| Thickness | 2 mm |
| Net Weight | 1.6 kg |
| Depth | 15 mm |
| Fixing Mode |
|
| Cut-Out Dimensions | 11 x 26 mm |
| Number Of Slots | 434 |
| Width | 451 mm |
| Height | 450 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
