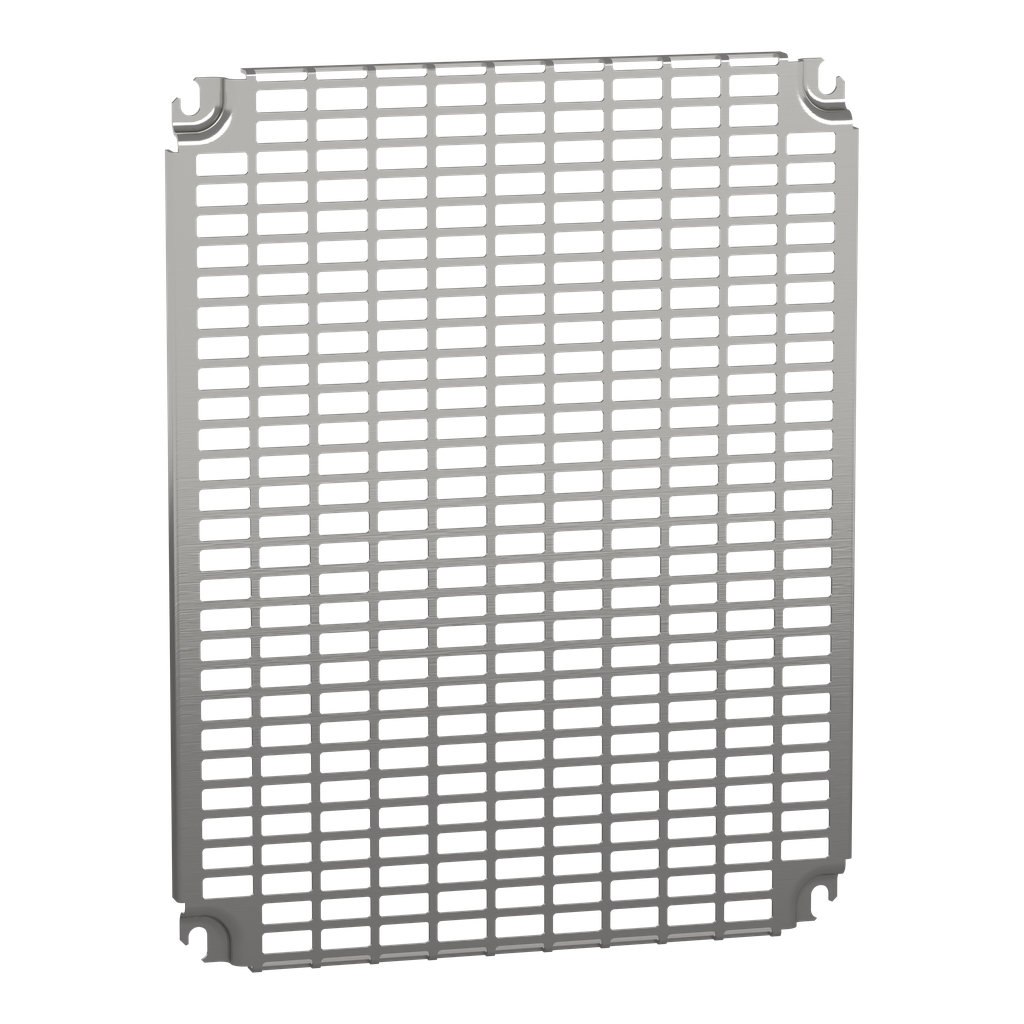

NSYMR54 - Monobloc perforated plates H500xW400mm with universal perforations 11x26mm

NSYMR54

Monobloc perforated plates H500xW400mm with universal perforations 11x26mm

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is500 x W is400 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 341 slots. Variant particularity is Installation in rear of enclosure.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Enclosure Nominal Dimensions	H: 500 mm W: 400 mm
Range Compatibility	Spacial (Spacial S3D) Spacial (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM)
Material	steel
Accessory / Separate Part Category	mounting accessory
Surface Finish	zinc coated
Quantity Per Set	set of 1
Product Or Component Type	mounting plate
Device Application	multi-purpose
Mounting Plate Description	Telequick perforated
Range	Spacial
Mounting Location	step slide direct fixing on backstuds
Warranty	18 months
Cut-Out Dimensions	11 x 26 mm
Number Of Slots	341
Width	351 mm
Height	450 mm
Variant Particularity	installation in rear of enclosure
Thickness	2 mm
Net Weight	1.3 kg
Depth	15 mm
Fixing Mode	screwed on backstuds M8 by fixing element
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
