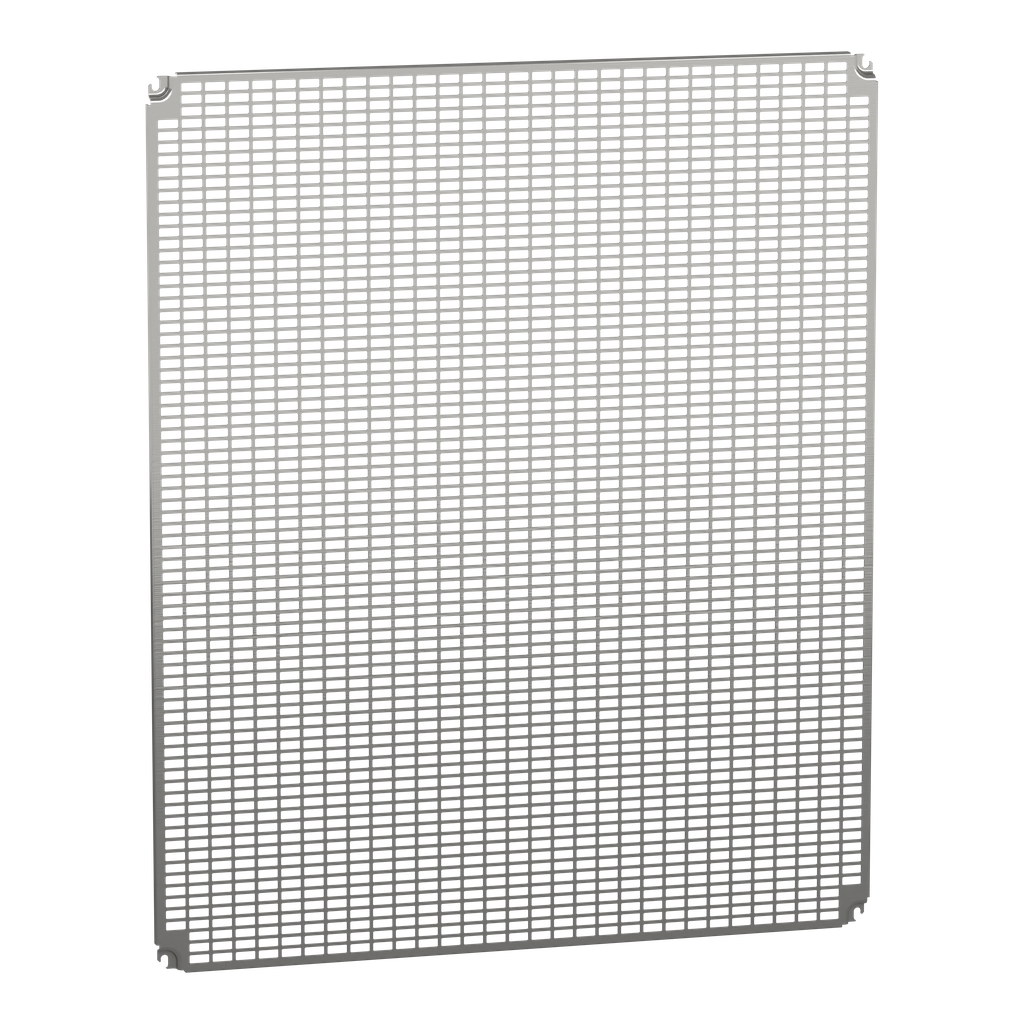

NSYMR1210 - Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm

NSYMR1210

Add to Quote Catalogue

Enclosure Nominal Dimensions	H: 1200 mm W: 1000 mm
Range Compatibility	Spacial (Spacial S3D) Spacial (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM)
Material	steel
Accessory / Separate Part Category	mounting accessory
Surface Finish	zinc coated
Quantity Per Set	set of 1
Product Or Component Type	mounting plate
Device Application	multi-purpose
Mounting Plate Description	Telequick perforated
Range	Spacial
Mounting Location	direct fixing on backstuds step slide
Warranty	18 months
Surface And Useful Surface	108.9 dm²
Cut-Out Dimensions	11 x 26 mm
Number Of Slots	2325
Width	951 mm
Height	1145 mm
Maximum Load	250 kg S3D, CRN, S3X enclosures 150 kg PLM enclosure
Variant Particularity	installation in rear of enclosure
Thickness	2 mm
Net Weight	7.8 kg
Fixing Mode	screwed on backstuds M8 by fixing element
Permanent Permissible Load	272.2 kg S3D, CRN, S3X enclosures 163.3 kg PLM enclosure
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
