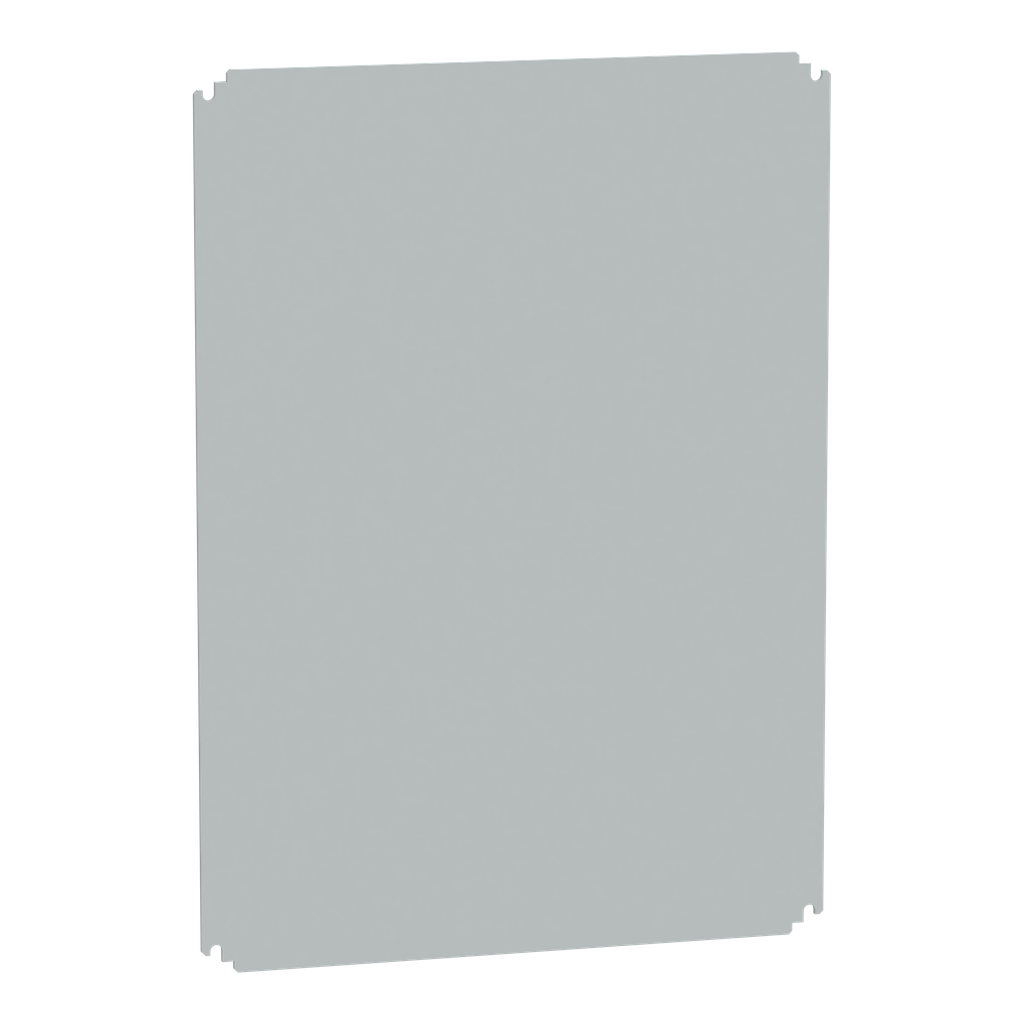

NSYMPP86 - Insulating mounting plate for enclosure H800xW600mm made of polyester

NSYMPP86

Add to Quote Catalogue

Range Compatibility	Spacial (Spacial S3D) Spacial (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM)
Material	fibreglass reinforced polyester
Accessory / Separate Part Category	mounting accessory
Quantity Per Set	set of 1
Product Or Component Type	mounting plate
Color	Gray RAL 7035)
Device Application	multi-purpose
Mounting Plate Description	plain
Range	Spacial
Mounting Location	step slide direct fixing on backstuds
Warranty	18 months
Surface And Useful Surface	42.1 dm²
Width	nominal 550 mm enclosure nominal dimension 600 mm
Height	nominal 765 mm enclosure nominal dimension 800 mm
Maximum Load	150 kg PLM enclosure 150 kg S3D, CRN, S3X enclosures
Variant Particularity	with enclosures H800 x W1200
Thickness	5 mm
Net Weight	3.8 kg
Fixing Mode	screwed on backstuds M8 by fixing element
Permanent Permissible Load	63.1 kg S3D, CRN, S3X enclosures 63.1 kg PLM enclosure
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP100104EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
