NSYMM53

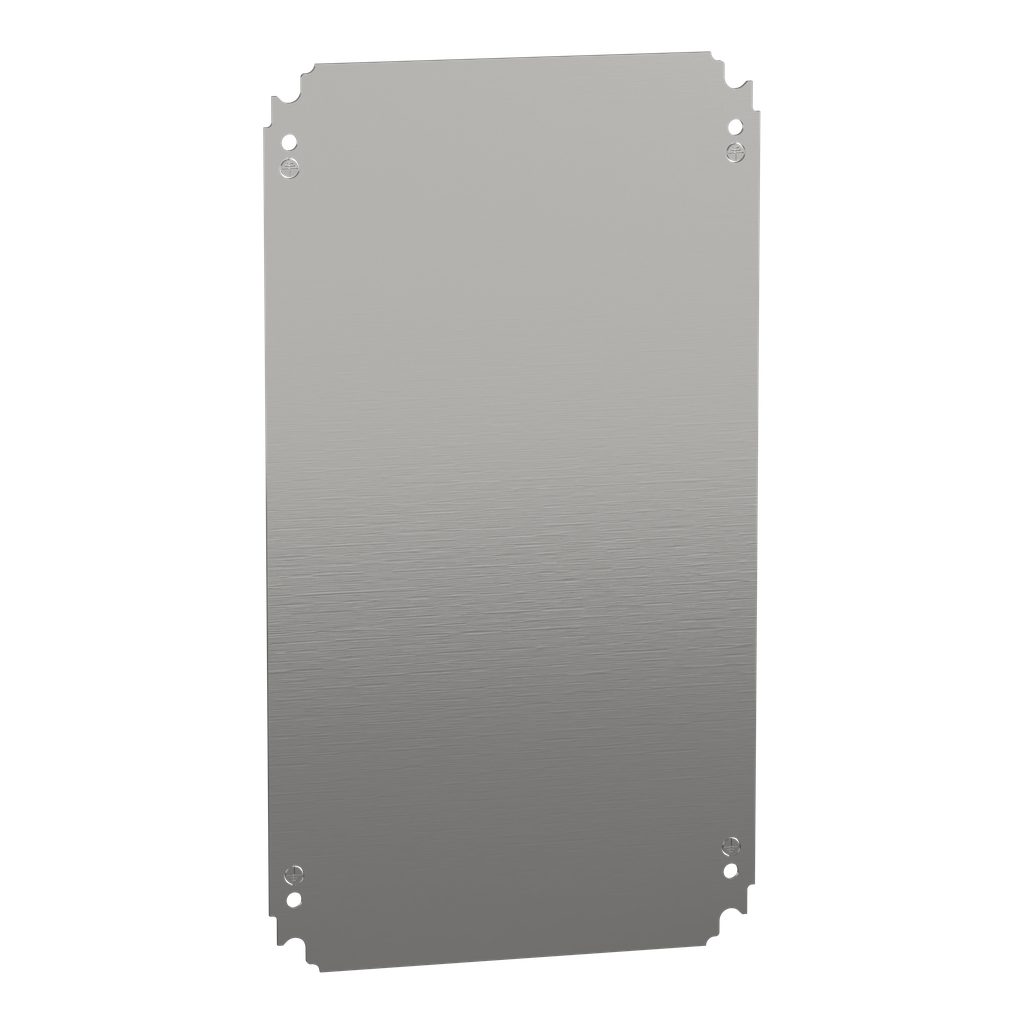

Plain mounting plate H500xW300mm made of galvanised sheet steel
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is300 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Set of 1.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Enclosure Nominal Dimensions | H: 500 mm W: 300 mm |
|---|---|
| Range Compatibility |
|
| Material | galvanised steel |
| Accessory / Separate Part Category | mounting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | mounting plate |
| Device Application | multi-purpose |
| Mounting Plate Description | plain |
| Range | Spacial |
| Mounting Location |
|
| Warranty | 18 months |
| Width | 250 mm |
| Height | 450 mm |
| Variant Particularity | installation in enclosures with inverted dimensions |
| Thickness | 1.8 mm |
| Net Weight | 1.616 kg |
| Fixing Mode |
|
| Permanent Permissible Load | 60 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
