NSYMFB

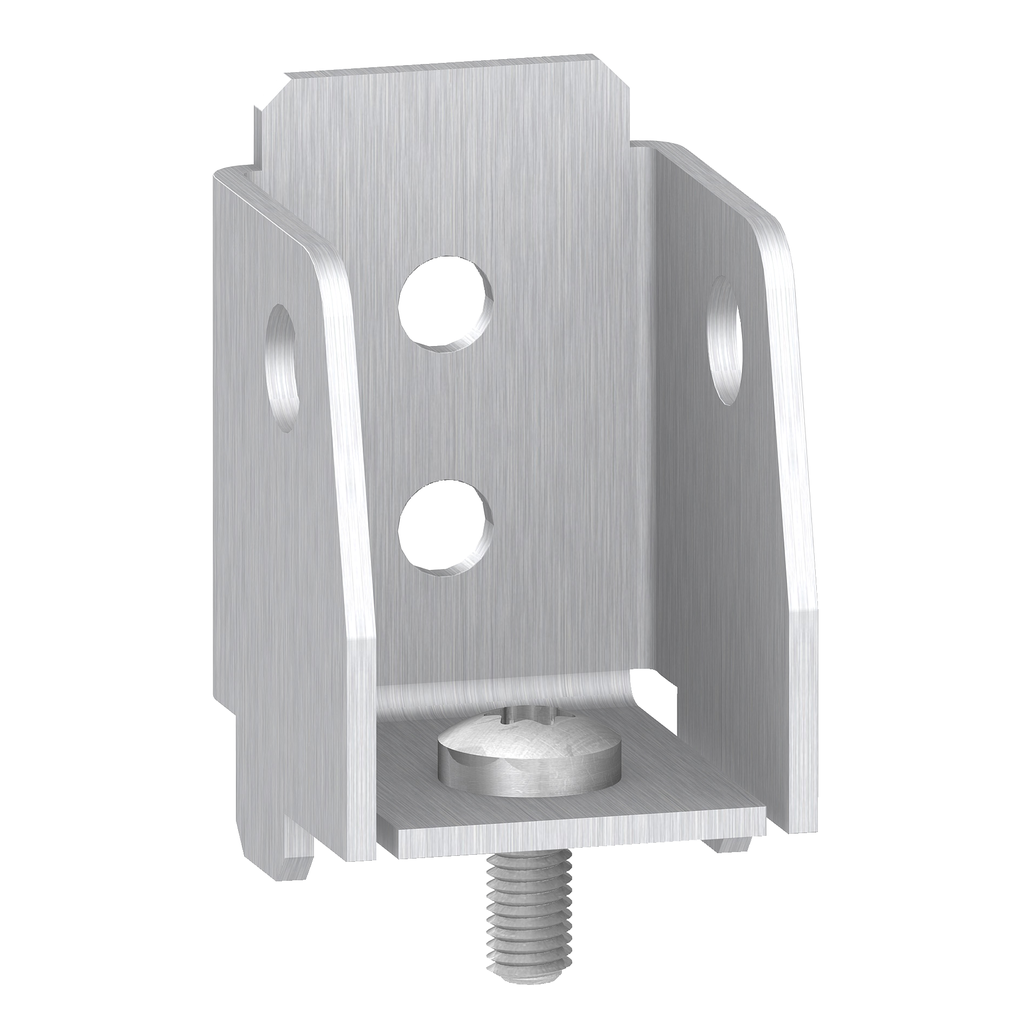

Fixing brackets for internal fixing of vertical rails at the same level of base
Fixing brackets for internal fixing of vertical rails for Spacial. H is36 x W is 74 x D is144 mm. For fixing at the same level of base. Mounting support on standard or technical uprights. Fixing by screw type M6 self tapping. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. 4 brackets for fixing uprights, fixing elements inlc.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Mounting Support | standard or technical uprights |
|---|---|
| Range Compatibility |
|
| Material | steel |
| Accessory / Separate Part Category | mounting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | fixing bracket |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Spacial |
| Warranty | 18 months |
| Width | 74 mm |
| Height | 36 mm |
| Surface Finish | zinc coated |
| Adjustment | adjustable in depth every 25 mm |
| Depth | 144 mm |
| Fixing Mode | by screws M6 self tapping |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
- Universal Enclosures - Quick Selection Guide (2023 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures - UE14MK01EN+(web) (pdf)
- Instruction Sheet for internal fixing bracket of vertical rails - same level of base - 7313080001 (pdf)
