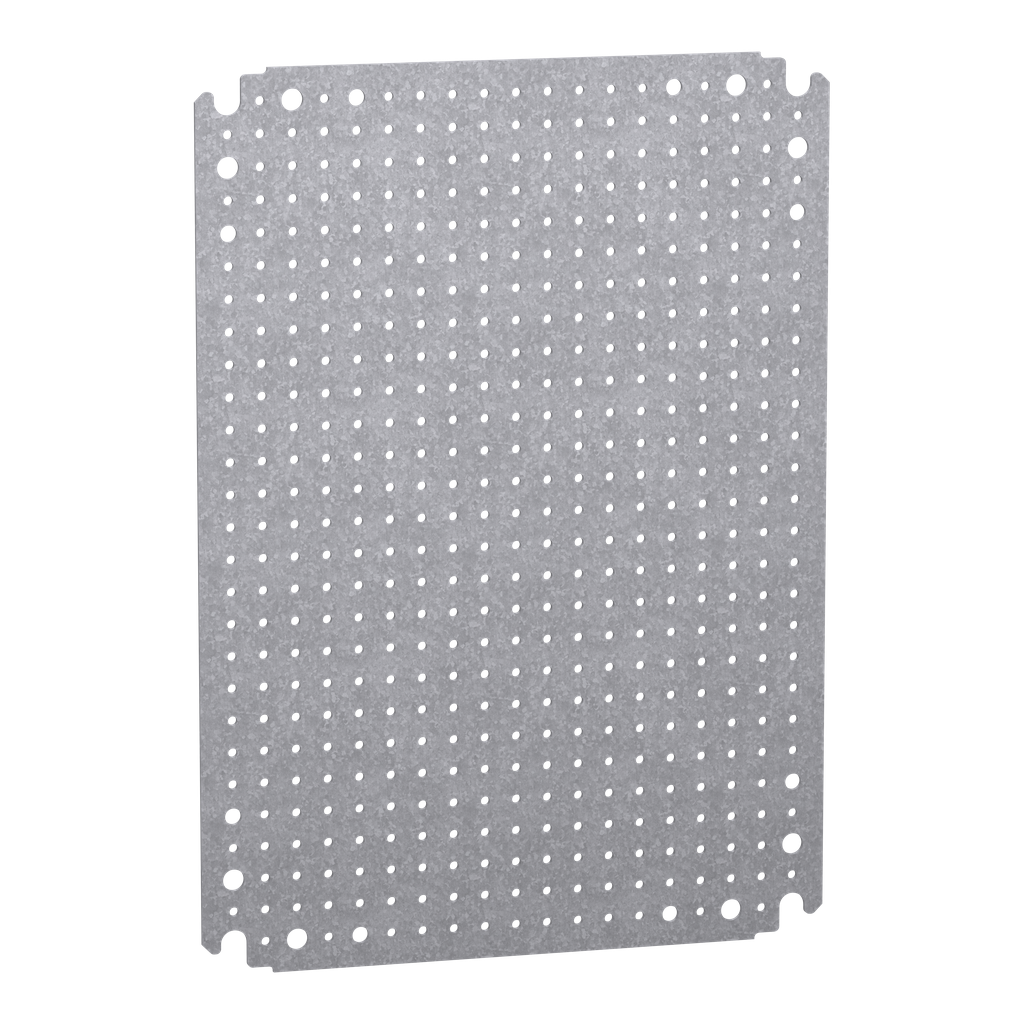

Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is300 x W is400 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Brand: Schneider Electric
Add to Quote CatalogueEnclosure Nominal Dimensions |
|
---|---|
Range Compatibility |
|
Accessory / Separate Part Category | mounting accessory |
Product Or Component Type | mounting plate |
Range | Spacial |
Mounting Location |
|
Material | galvanised steel |
Quantity Per Set | set of 1 |
Device Application | multi-purpose |
Mounting Plate Description | microperforated |
Warranty | 18 months |
Variant Particularity | installation in enclosures with inverted dimensions |
Thickness | 1.8 mm |
Net Weight | 1.36 kg |
Depth | 125 mm |
Fixing Mode |
|
Permanent Permissible Load | 60 kg |
Width | 350 mm |
Height | 250 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2202003EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
