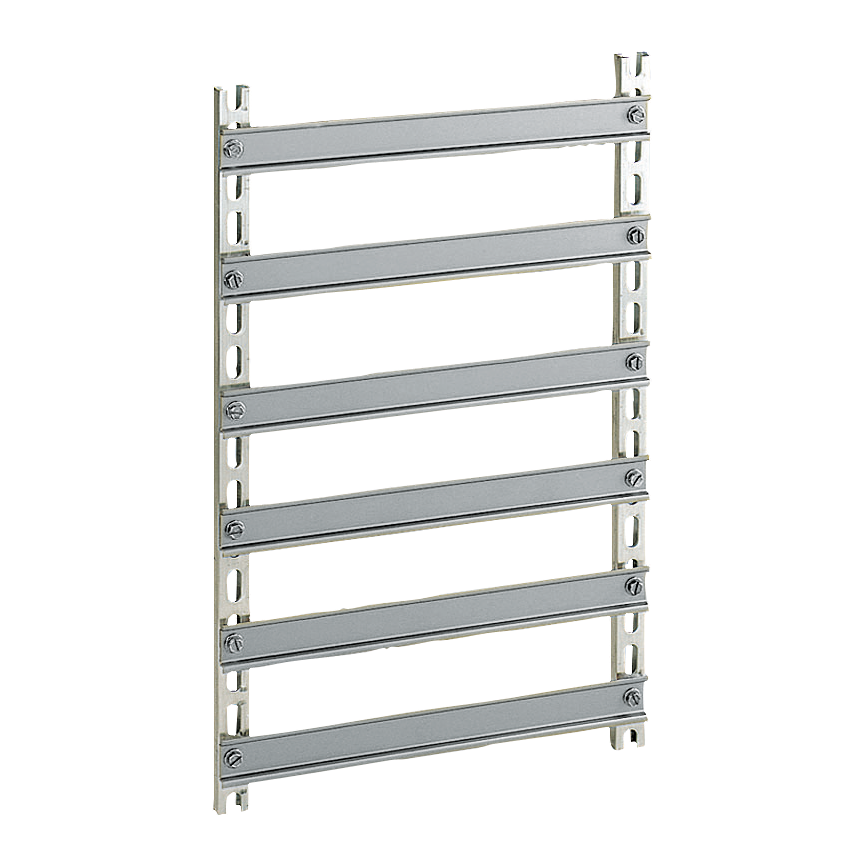

NSYMD128 - Symmetrical mounting chassis (7 rails) for enclosure dimensions H1200xW800mm

NSYMD128

Add to Quote Catalogue

Type Of Rail	symmetrical DIN
Mounting Support	spacer direct fixing on backstuds step slide
Range Compatibility	Spacial (Spacial CRN) Spacial (Spacial S3D) Spacial (Spacial S3X) Thalassa (Thalassa PLM)
Accessory / Separate Part Category	mounting accessory
Quantity Per Set	set of 1
Product Or Component Type	chassis
Device Composition	fixing elements 2 upright 7 DIN rail
Device Application	multi-purpose
Range	Spacial
Warranty	18 months
Adjustment	on step slides, type NSYSDCR…, pitch 12.5 mm
Width	nominal 800 mm real 750 mm
Height	real 1152.4 mm nominal 1200 mm
Material	uprights aluminium rail steel
Depth	real 30 mm
Fixing Mode	screwed on backstuds by fixing element
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP100104EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
