NSYLAMDCF

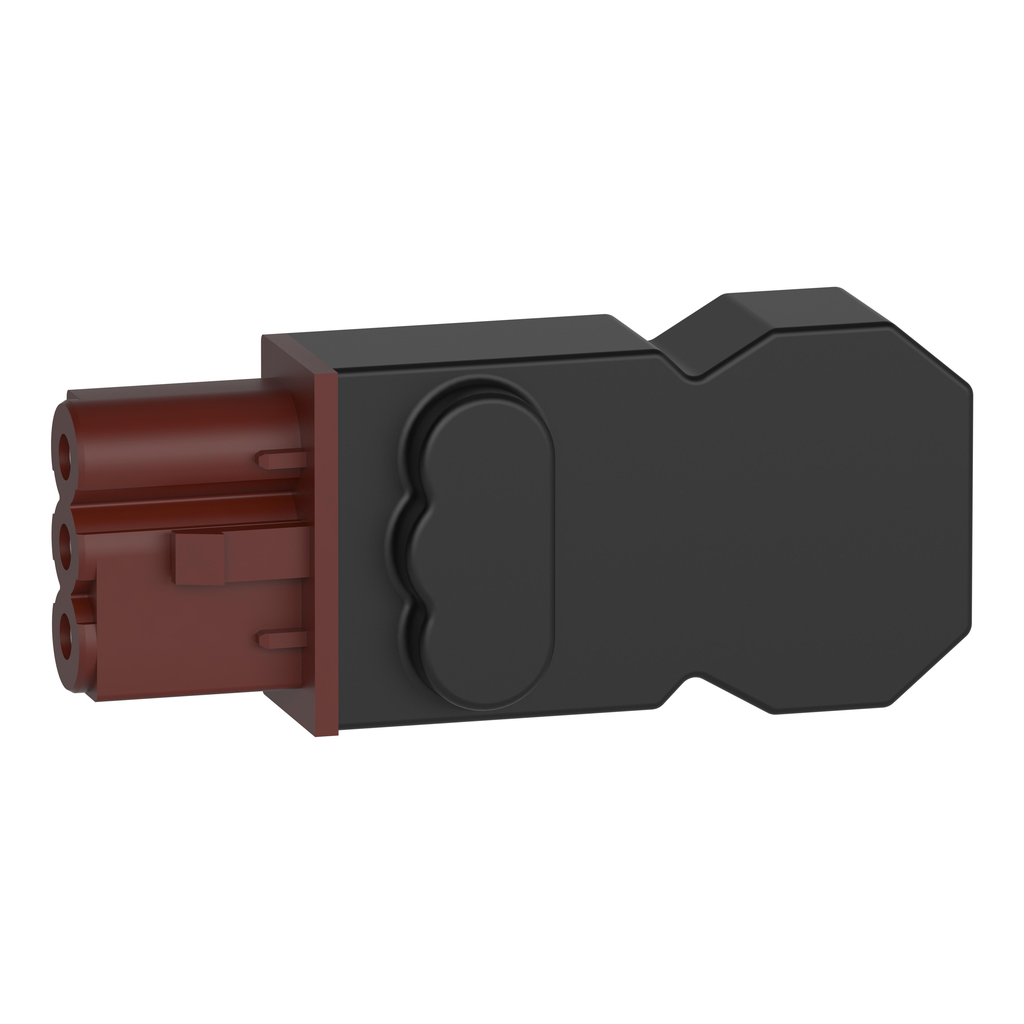

DC female connector for Multi-fixing LED lamps, 3P, screw connection, 250V/16A
Specifications
| Network Type | DC |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Additional Information | with strain relief |
| Line Rated Current | 16 A |
| Product Or Component Type | cable connector |
| Rated Voltage | 250 V |
| Device Application | cable installation |
| Range | Thalassa |
| Connector Type | female |
| Height | 13.8 mm |
| Color | Black |
| Cable Cross Section | 0.5-2.5 mm² |
| Nominal Cross Section | 0.5-2.5 mm² |
| Width | 23 mm |
| Depth | 53.2 mm |
| Fixing Mode | screw |
| Cable Outer Diameter | 5.5-9 mm |
| Material | polyamide |
| Colour Of Cover | brown |
| Ip Degree Of Protection | IP20 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2202002EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202002EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
