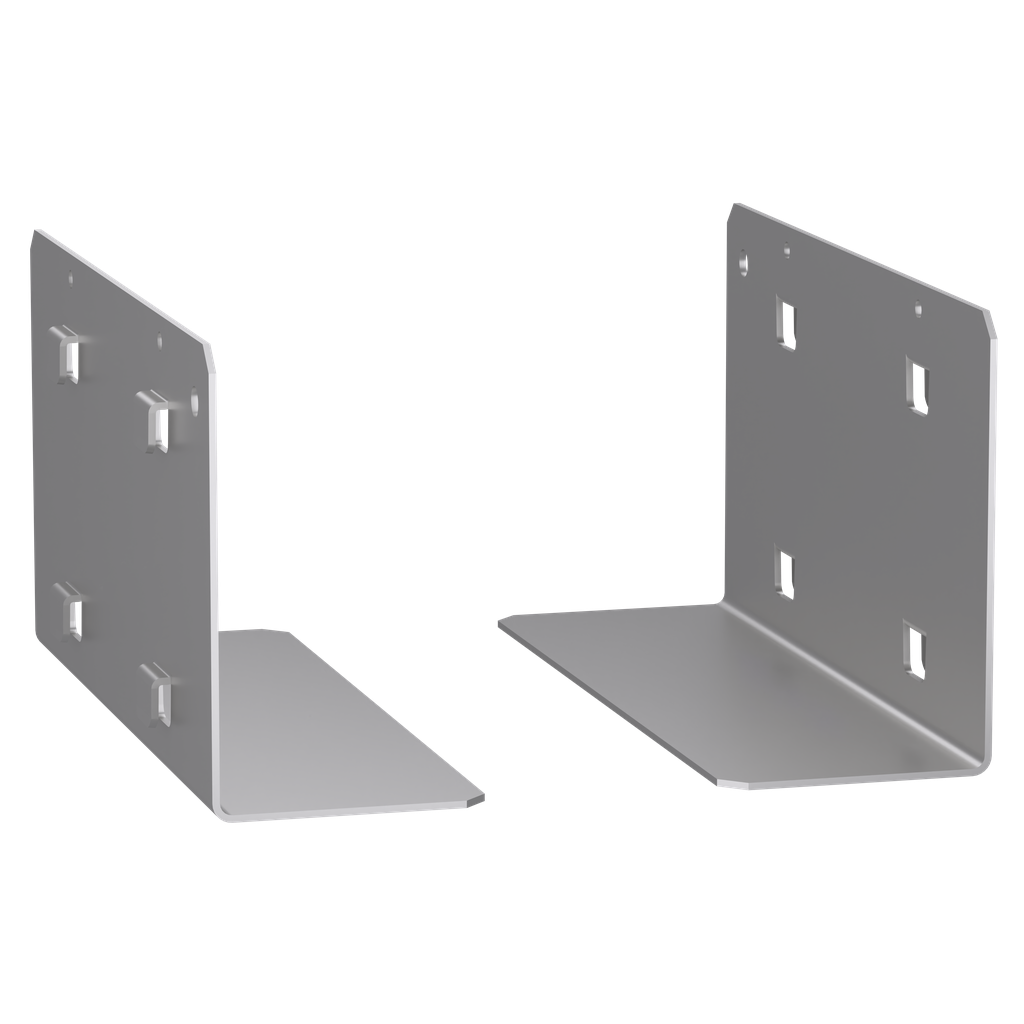

NSYGB140
19" 2 U partial fixed slides - Fixing onto 19" front uprights - 15 kg load
2U partial fixed 19-inch slide fixed by attachment on the front or rear 19-inch uprights, made of treated steel and with an acceptable load of 30kg. Without heel height.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Actassi |
|---|---|
| Quantity Per Set | set of 1 |
| Product Or Component Type | fixed slide |
| Device Application |
|
| Warranty | 18 months |
| Number Of Rack Unit | 2U |
| Width | 140 mm |
| Height | 88.9 mm |
| Mounting Support | 19" rack, front or rear |
| Material | steel |
| Surface Finish | zinc coated |
| Range Compatibility |
|
| Number Of Units 19" | 2 |
| Thickness | 1.2 mm |
| Product Compatibility | Spacial SF-S, SF-E, VDM, PLA enclosures |
| Fixing Mode | by clips 19" uprights of rack |
| Device Composition |
|
| Depth | 44 mm |
| Permanent Permissible Load | 15 kg |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100103EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
