NSYECVT3V440
Actassi - ventilation plate with 3 cut-outs with fan

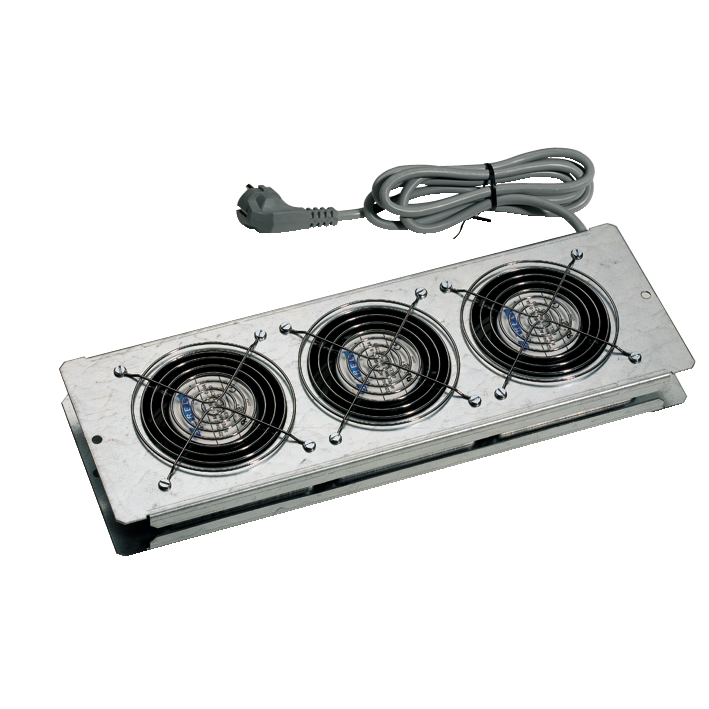

This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 3 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Noise Level | 34 dB |
|---|---|
| Quantity Per Set | set of 1 |
| Cable Gland Type |
|
| Product Or Component Type | fan |
| Accessory / Separate Part Type | ventilation plate |
| Device Application | electronic application |
| Range | Actassi |
| Warranty | 18 months |
| Width | fixing centers 420 mm |
| Range Compatibility |
|
| Material | plate galvanised steel |
| Air Flow | 170 m3/h |
| Product Compatibility | SF roof for Actassi plates |
| Device Composition |
|
| Fixing Mode | by screws |
| Mounting Location | on outside of the roof |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100103EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
