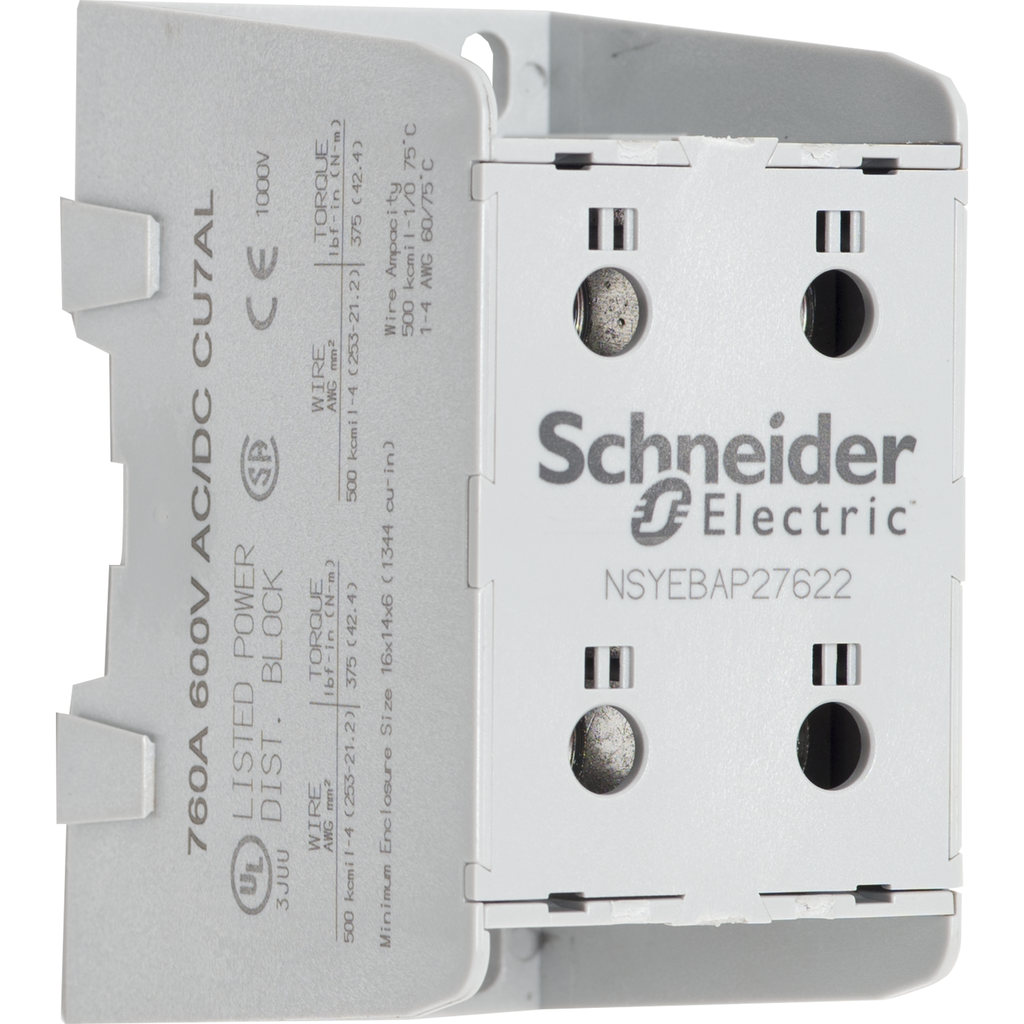

Power distribution block, Linergy, enclosed, 760A CU, 620A AL, 600 V, 2 line side lug, 2 load side lug, AL lug, panel
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 760A at 600 V when copper wire is used and 620A at 600 V when aluminum wire is used. Each of the two line side terminals will accept 4 AWG to 500 kcmil copper or aluminium wires. Each of the two load side terminals will accept 4 AWG to 500 kcmil copper or aluminium wires. This block can be mounted directly to a panel. This block is 4.63 inches tall, 2.61 inches wide and 3.35 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | NSYEB |
|---|---|
| Product Or Component Type | Power Distribution Block |
| Height | 4.63 in |
| Short-Circuit Current | 100 kA |
| Tightening Torque |
|
| Mounting Support | panel |
| Number Of Cables |
|
| Material | thermoplastic block |
| Electrical Connection | tin plated aluminium lugs |
| Width | 2.61 in |
| Depth | 3.35 in |
| Colour Of Enclosure | grey |
| Line Rated Current |
|
| Connections - Terminals |
|
| Product Compatibility | NSYEBP500 500 kcmil) |
| Fixing Mode | by screws 1/4 inch |
| Wire Stripping Length |
|
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Number Of Terminals |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free product |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-257 °F |
| Dielectric Strength | 1000 V 240 mm² IEC 60947-7-1 |
