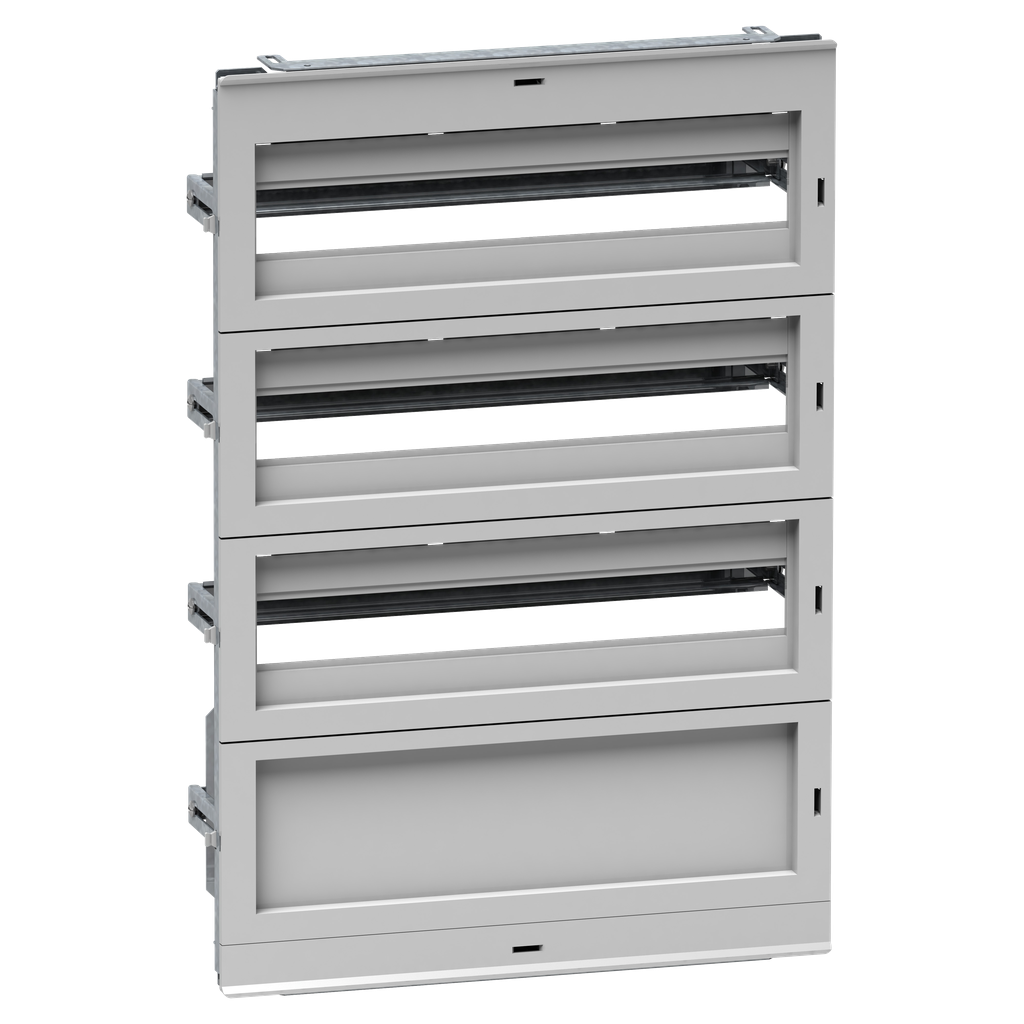

NSYDLA66G - Modular distribution chassis 66 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75

NSYDLA66G

Add to Quote Catalogue

Range Compatibility	Spacial (Spacial S3D) Thalassa (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM)
Accessory / Separate Part Category	mounting accessory
Quantity Per Set	set of 1
Product Or Component Type	chassis
Device Composition	1 chassis structure 2 finish cover 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² 3 front panels with 35 mm DIN rail 1 plain front panel with mounting plate
Device Application	modular distribution application multi-purpose
Device Short Name	DLA
Range	Spacial
Mounting Location	front of enclosure
Number Of Cut-Out	3 cut-outs
Number Of Horizontal Rows	4
Width	460 mm
Height	680 mm
Total Number Of 18 Mm Modules	66
Material	front panel self-extinguishing insulating chassis structure and rails steel
Type Of Front Plate	plain and cut-out plates
Color	front panel Gray RAL 7035)
Adjustment	in height from 40 to 85 mm DIN rail
Fixing Mode	by fixing element - on front with supports
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
