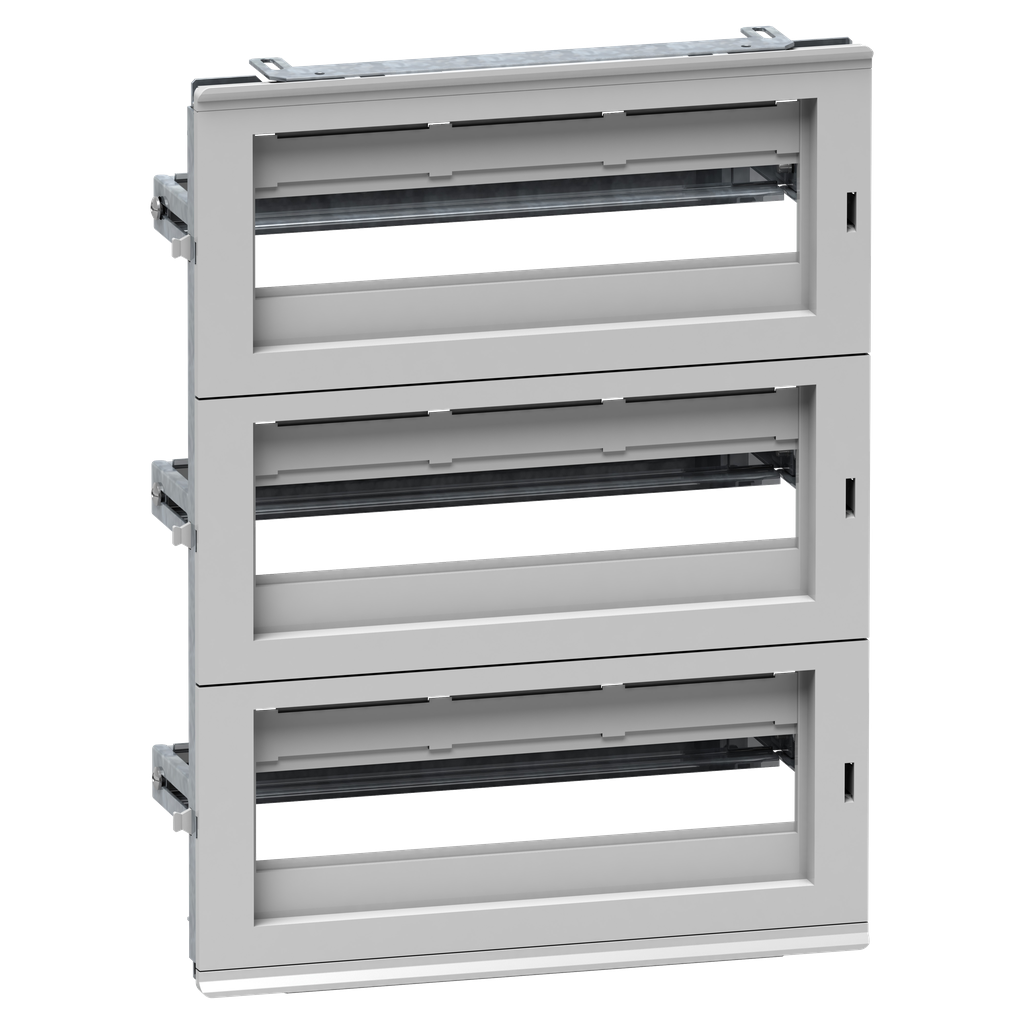

NSYDLA48G - Modular distribution chassis 48 modules for NSYPLM54,NSYS3D54,NSYCRN54,NSYS3X54

NSYDLA48G

Add to Quote Catalogue

Range Compatibility	Spacial (Spacial S3D) Thalassa (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM)
Accessory / Separate Part Category	mounting accessory
Quantity Per Set	set of 1
Product Or Component Type	chassis
Device Composition	1 chassis structure 2 finish cover 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² 3 front panels with 35 mm DIN rail
Device Application	multi-purpose modular distribution application
Device Short Name	DLA
Range	Spacial
Mounting Location	front of enclosure
Number Of Cut-Out	3 cut-outs
Number Of Horizontal Rows	3
Width	360 mm
Height	480 mm
Total Number Of 18 Mm Modules	48
Material	front panel self-extinguishing insulating chassis structure and rails steel
Type Of Front Plate	plain and cut-out plates
Color	front panel Gray RAL 7035)
Adjustment	in height from 40 to 85 mm DIN rail
Fixing Mode	by fixing element - on front with supports
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110704EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
