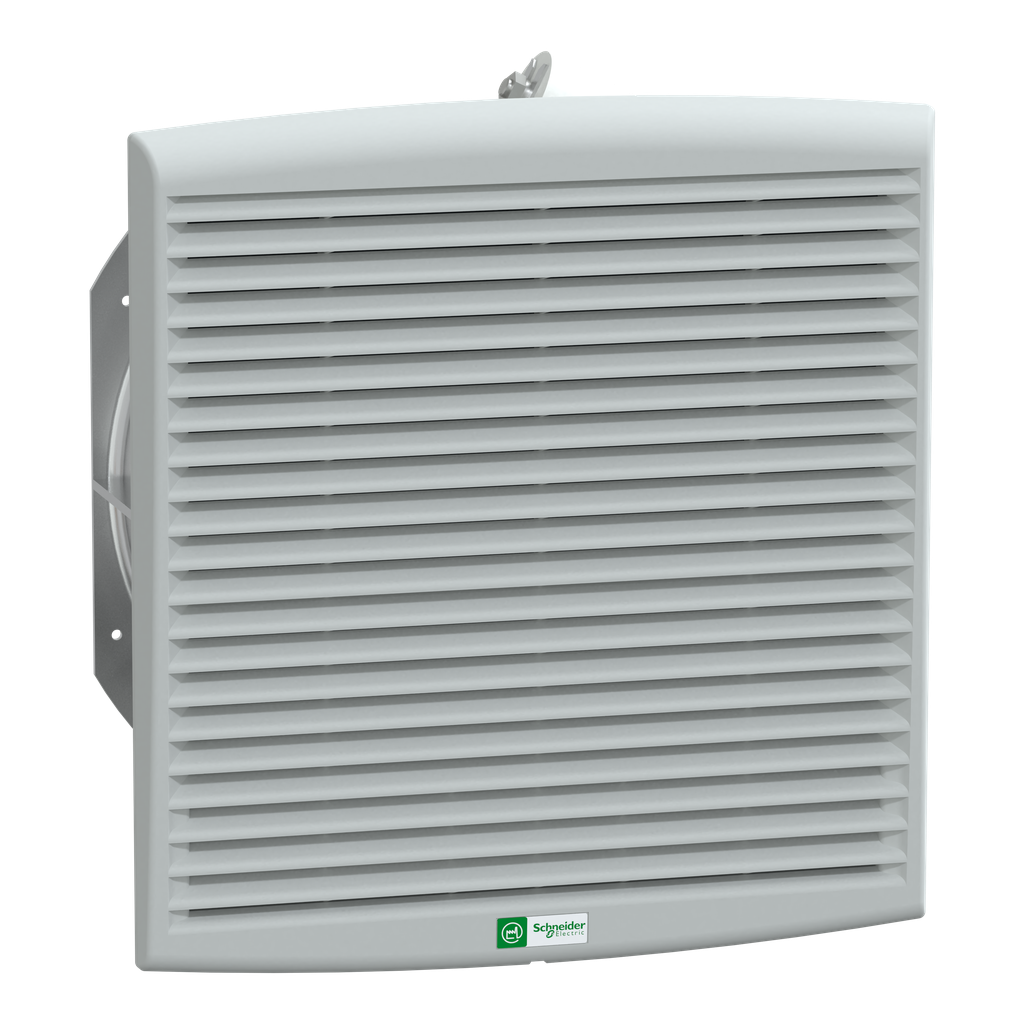

NSYCVF850M115PF - ClimaSys forced vent. IP54, 850m3/h, 115V, with outlet grille and filter G2

NSYCVF850M115PF

ClimaSys forced vent. IP54, 850m3/h, 115V, with outlet grille and filter G2

ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 145W 50 Hz, 182W 60 Hz. Free flow rate with standard filter of 944 m3/h at 50 Hz and 983 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Us] Rated Supply Voltage	103...122 V
Air Flow	free flow rate with standard filter: 983 m3/h at 50 Hz free flow rate with standard filter: 944 m3/h at 60 Hz
Type Of Ventilation Filter	standard
Product Or Component Type	fan
Product Name	ClimaSys CV
Range	ClimaSys
Input Voltage	115 V 50/60 Hz
Warranty	18 months
Connections - Terminals	terminal block
Ambient Air Temperature For Operation	-15-60 °C
Power Range	145 W 50 Hz 182 W 60 Hz
Condition Of Use	filter must be cleaned and replaced regularly overfrequent filter replacement should be avoided outside temperature must be 5 °C lower than inside temperature flow rates depends on the work point, see ProClima software surrounding environment must be relatively clean
Maximum Pressure	170 Pa flow rate 0 m³/h
Device Composition	1 axial motor 2 protective grille on the front and rear surfaces 1 filter front of axial motor 1 outlet grille front 1 cut-out template
Net Weight	4.1 kg
Depth	external 162 mm
Cut-Out Dimensions	291 x 291 mm
Ambient Air Temperature For Storage	-40-70 °C
Width	external 316 mm
Height	external 336 mm
Material	outlet grille injected thermoplastic (ASA PC)
Ip Degree Of Protection	IP54
Color	outlet grille Gray RAL 7035)
Line Rated Current	1.279-1.279 A 50 Hz 1.6-1.6 A 60 Hz
Bearing Type	ball
Noise Level	77-78 dB
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant
Lead Time	Usually Ships within 4 Weeks
