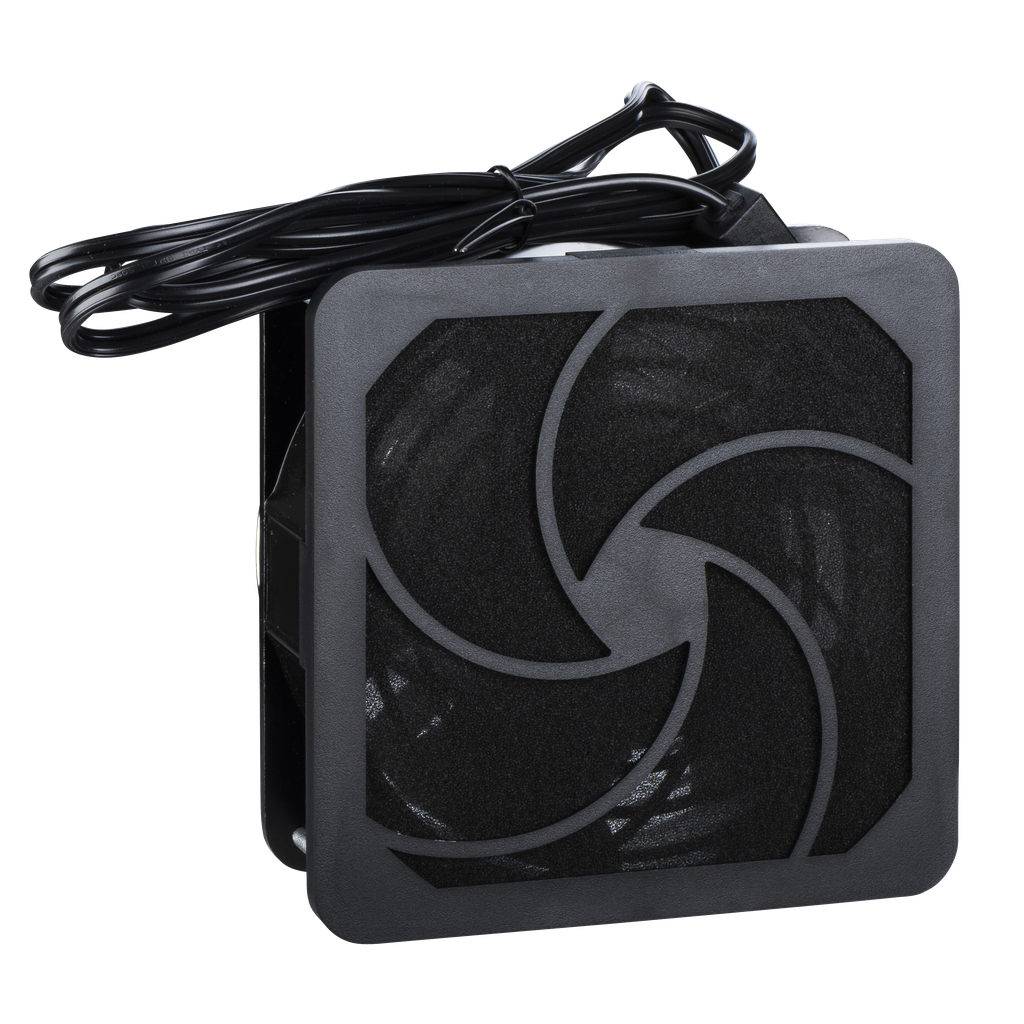

Climasys Forced ventilator with outlet grille plastic and filter. 230 V 50/60 Hz input voltage. Free flow rate w/o filter/grille is 170 m3/h. Free flow rate w/ std. filter is 65 m3/h at 50 Hz. ABS for outlet grille, Polyurethane foam for filter. Black color. IP20. Cut-out dimensions 108 mm.
Brand: Schneider Electric
Add to Quote CatalogueInput Voltage | 230 V 50/60 Hz |
---|---|
Air Flow |
|
Type Of Ventilation Filter | standard |
Product Or Component Type | fan |
Product Name | ClimaSys CV |
Range | ClimaSys |
Warranty | 18 months |
Cut-Out Dimensions | Ø 108 mm |
Width | external 124 mm |
Height | external 124 mm |
Material |
|
Ip Degree Of Protection | IP20 |
Color |
|
Device Composition |
|
Depth | external 55 mm |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1107017EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110717EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
