NSYCVF570M115MF

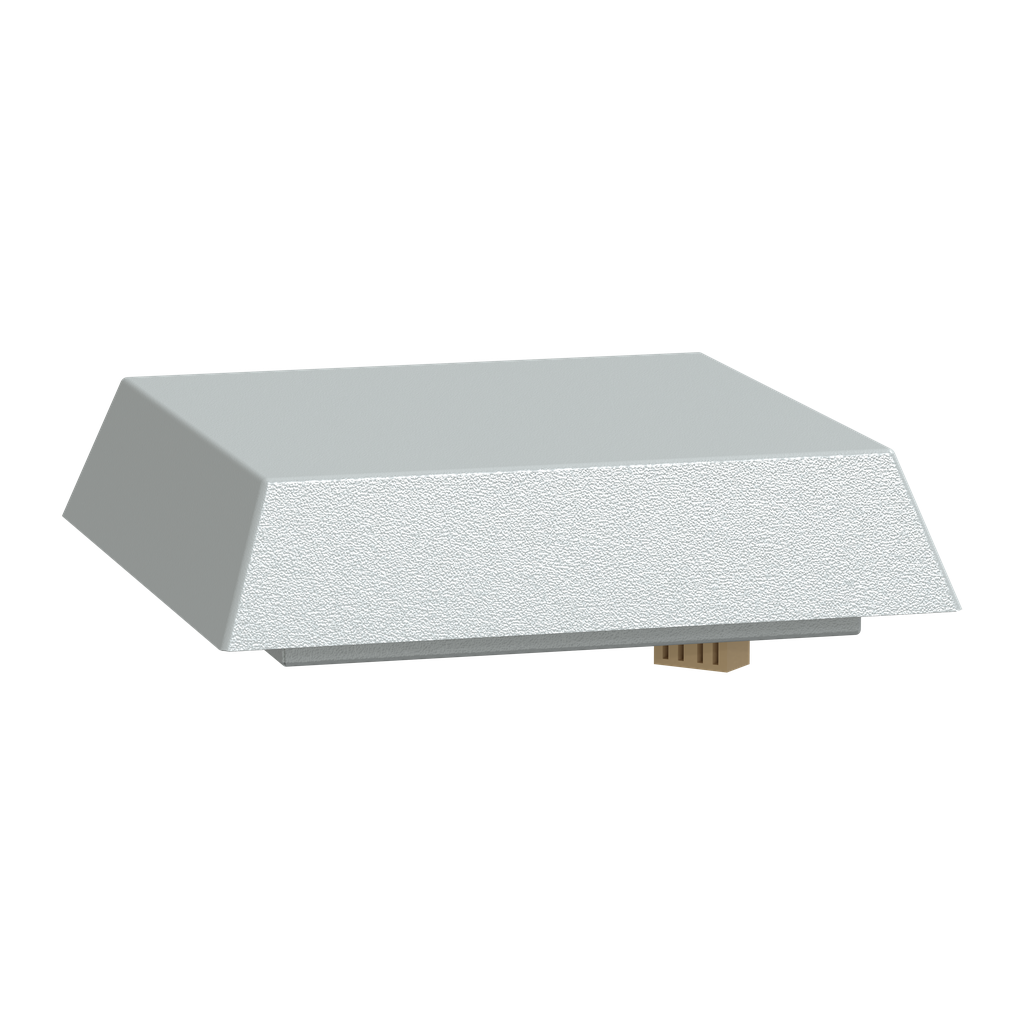

ClimaSys forced vent. roof, 570m3/h, 115V, with roof outlet grille and filter G2
Specifications
| Input Voltage | 115 V 50/60 Hz |
|---|---|
| Air Flow |
|
| Type Of Ventilation Filter | G2 |
| Product Or Component Type | top hood with fan |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Warranty | 18 months |
| Cut-Out Dimensions | 228 x 228 mm |
| Width | external 340 mm |
| Height | external 96 mm |
| Power Range | 85 W |
| Material | hood steel |
| Ip Degree Of Protection | IP54 |
| Color | hood Gray RAL 7035) |
| Device Composition |
|
| Depth | external 340 mm |
| Noise Level | 64-64 dB |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1107017EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110717EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Documents
- Spec Sheet
- Template and Mounting instructions roof ventilation - NHA8041101-00 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
- ClimaSys Thermal Management System Brochure - Climasys.Enclosure-Thermal+Management+Brochure (pdf)
