NSYCVF54M230MM2

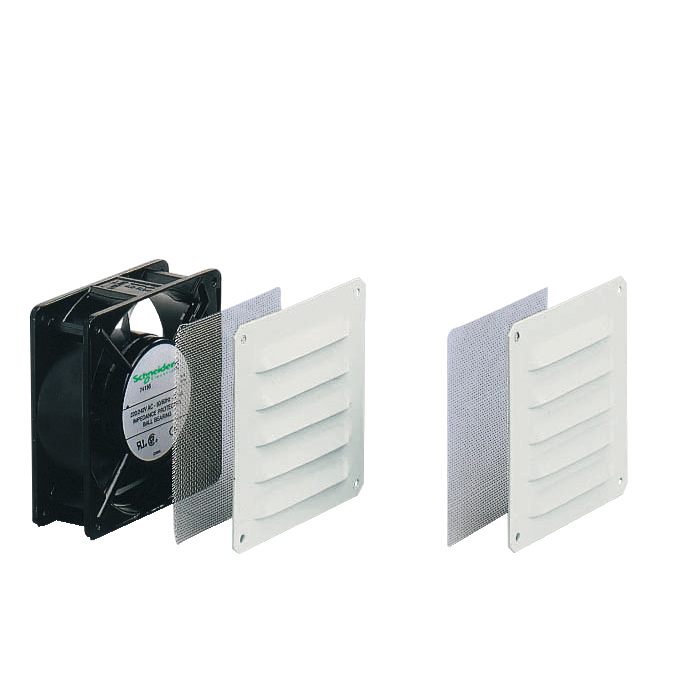

Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters
ClimaSys CV Axial motor ventilator with 2 metal outlet grilles and 2 anti-insect filters. 230V 50Hz or 60Hz. 22 W 50 Hz, 20 W 60 Hz. Free flow rate of 170 m3/h at 50 Hz and 208 m3/h at 60 Hz. 120 x 120 x 38 mm. Cut-out dimensions of 96 x 96 mm. Metal Outlet grilles, Steel made, epoxy-polyester powder finish, Grey RAL 7035, IP33 Protection, IK10 Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Air Flow |
|
|---|---|
| Type Of Ventilation Filter | anti-insect |
| Product Or Component Type | fan |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Input Voltage | 230 V 50/60 Hz |
| Warranty | 18 months |
| Device Composition |
|
| Depth | external 38 mm |
| Cut-Out Dimensions | 96 x 96 mm |
| Width | external 120 mm |
| Height | external 120 mm |
| Material |
|
| Ip Degree Of Protection | IP33 |
| Color | outlet grille Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110717EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1107017EN |
| Eu Rohs Directive | Compliant |
