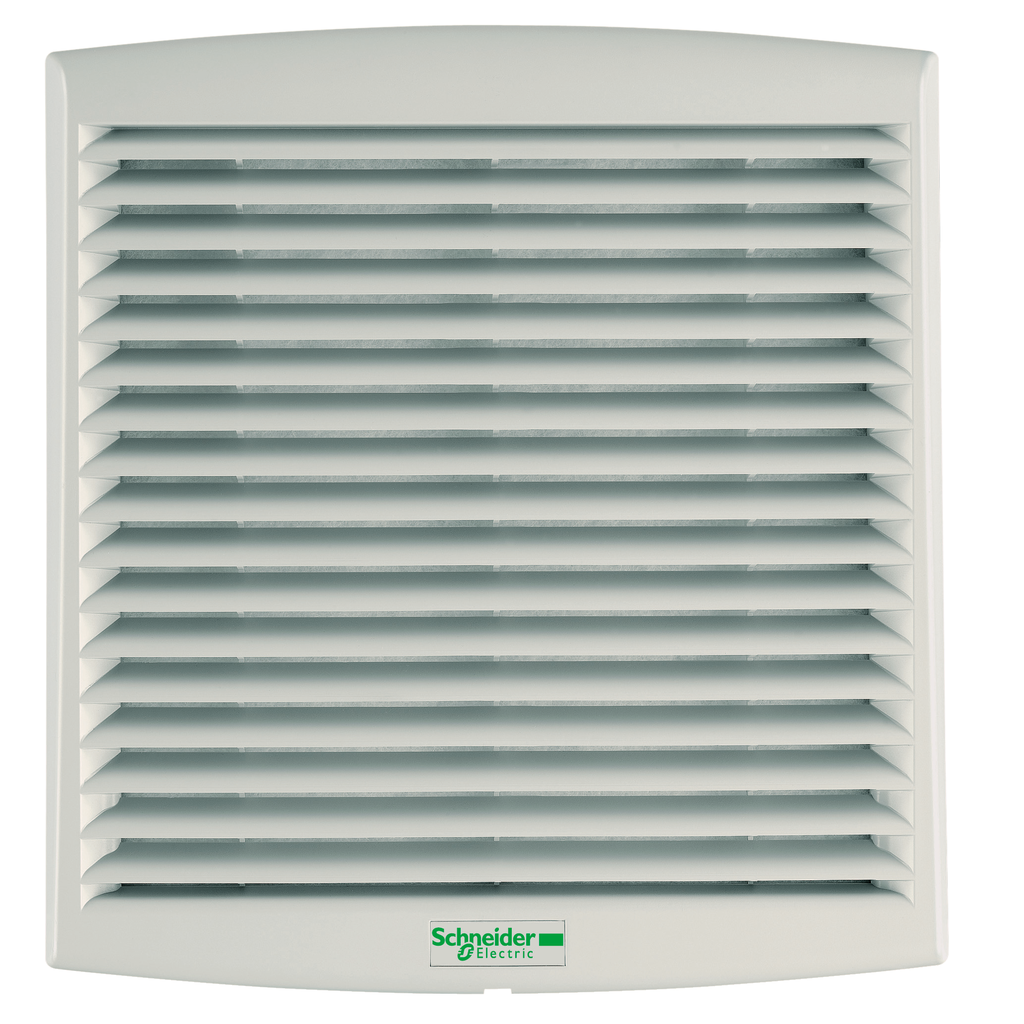

NSYCVF38M48DPF - ClimaSys forced vent. IP54, 44m3/h, 48V DC, with outlet grille and filter G2

NSYCVF38M48DPF

Add to Quote Catalogue

Input Voltage	48 V DC
[Us] Rated Supply Voltage	36...56 V
Air Flow	free flow rate with standard filter: 44 m3/h
Type Of Ventilation Filter	standard
Product Or Component Type	fan
Product Name	ClimaSys CV
Range	ClimaSys
Warranty	18 months
Connections - Terminals	cable
Ambient Air Temperature For Operation	-10-70 °C
Cut-Out Dimensions	92 x 92 mm
Ambient Air Temperature For Storage	-40-70 °C
Width	external 117 mm
Height	external 137 mm
Power Range	3.6 W
Material	outlet grille injected thermoplastic (ASA PC)
Ip Degree Of Protection	IP54
Condition Of Use	outside temperature must be 5 °C lower than inside temperature surrounding environment must be relatively clean overfrequent filter replacement should be avoided flow rates depends on the work point, see ProClima software filter must be cleaned and replaced regularly
Color	outlet grille Gray RAL 7035)
Maximum Pressure	29 Pa flow rate 0 m³/h
Device Composition	1 axial motor 2 protective grille on the front and rear surfaces 1 filter front of axial motor 1 outlet grille front 1 cut-out template
Line Rated Current	0.07-0.07 A
Bearing Type	ball
Net Weight	0.23 kg
Depth	external 49 mm
Noise Level	40-41 dB
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
