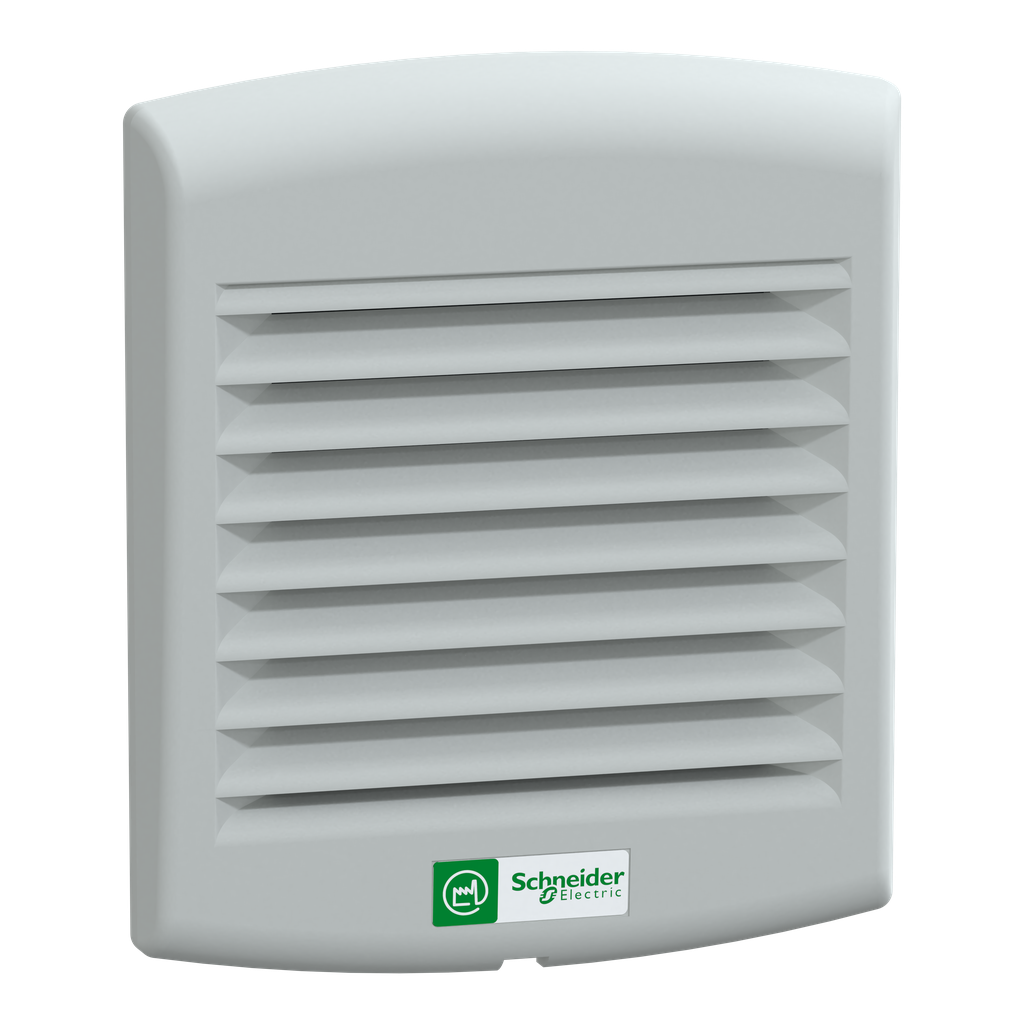

NSYCVF38M115PF
ClimaSys forced vent. IP54, 38m3/h, 115V, with outlet grille and filter G2
Specifications
| [Us] Rated Supply Voltage | 75...125 V |
|---|---|
| Air Flow |
|
| Type Of Ventilation Filter | standard |
| Product Or Component Type | fan |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Input Voltage | 115 V 50/60 Hz |
| Warranty | 18 months |
| Connections - Terminals | cable |
| Ambient Air Temperature For Operation | -10-70 °C |
| Power Range |
|
| Condition Of Use |
|
| Maximum Pressure | 29 Pa flow rate 0 m³/h |
| Device Composition |
|
| Net Weight | 0.22 kg |
| Depth | external 49 mm |
| Cut-Out Dimensions | 92 x 92 mm |
| Ambient Air Temperature For Storage | -40-70 °C |
| Width | external 117 mm |
| Height | external 137 mm |
| Material | outlet grille injected thermoplastic (ASA PC) |
| Ip Degree Of Protection | IP54 |
| Color | outlet grille Gray RAL 7035) |
| Line Rated Current |
|
| Bearing Type | ball |
| Noise Level | 40-41 dB |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110717EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1107017EN |
| Eu Rohs Directive | Compliant |
