NSYCVF165M24DPF

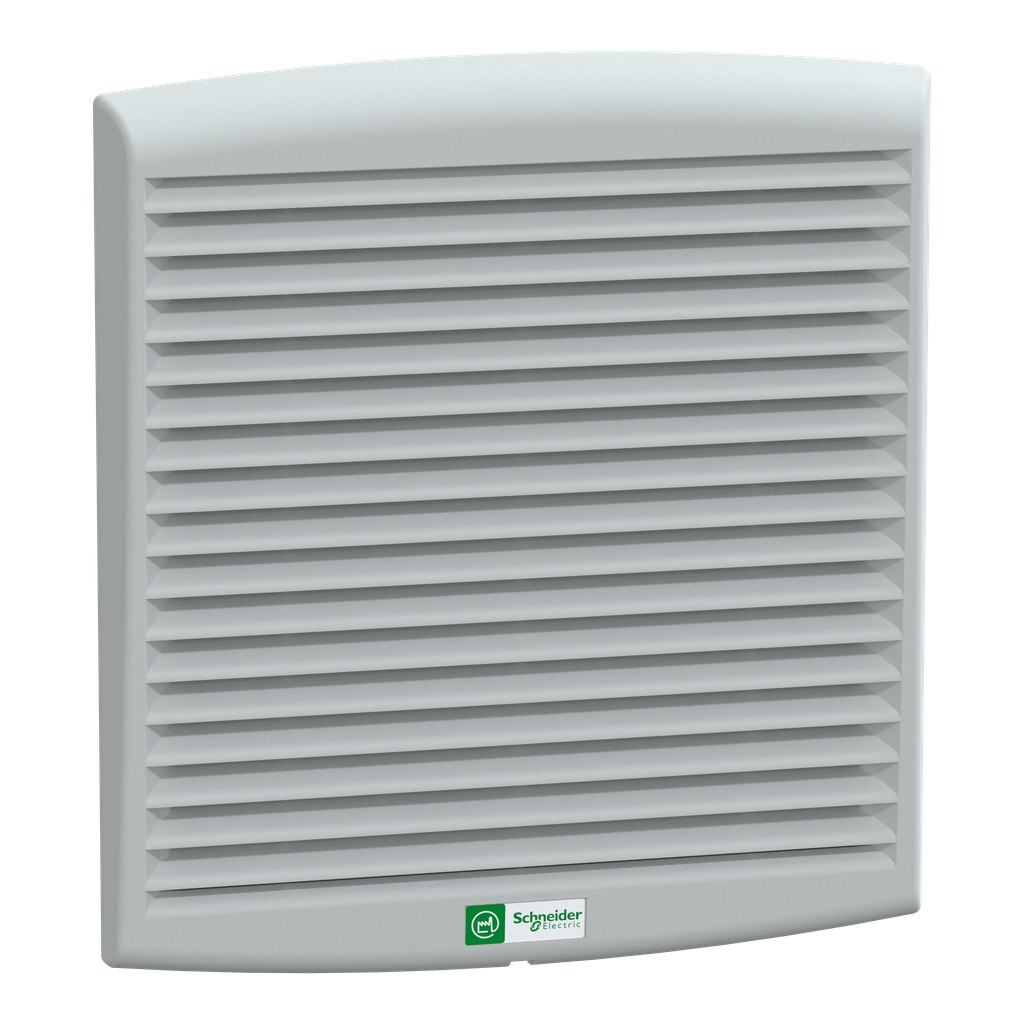

ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2
Specifications
| Input Voltage | 24 V DC |
|---|---|
| [Us] Rated Supply Voltage | 10...27.6 V |
| Air Flow | free flow rate with standard filter: 188 m3/h |
| Type Of Ventilation Filter | standard |
| Product Or Component Type | fan |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Warranty | 18 months |
| Connections - Terminals | cable |
| Ambient Air Temperature For Operation | -10-70 °C |
| Cut-Out Dimensions | 223 x 223 mm |
| Ambient Air Temperature For Storage | -40-70 °C |
| Width | external 248 mm |
| Height | external 268 mm |
| Power Range | 8 W |
| Material | outlet grille injected thermoplastic (ASA PC) |
| Ip Degree Of Protection | IP54 |
| Condition Of Use |
|
| Color | outlet grille Gray RAL 7035) |
| Maximum Pressure | 50 Pa flow rate 0 m³/h |
| Device Composition |
|
| Line Rated Current | 0.3-0.3 A |
| Bearing Type | ball |
| Net Weight | 0.81 kg |
| Depth | external 104 mm |
| Noise Level | 50-51 dB |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1107017EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110717EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
