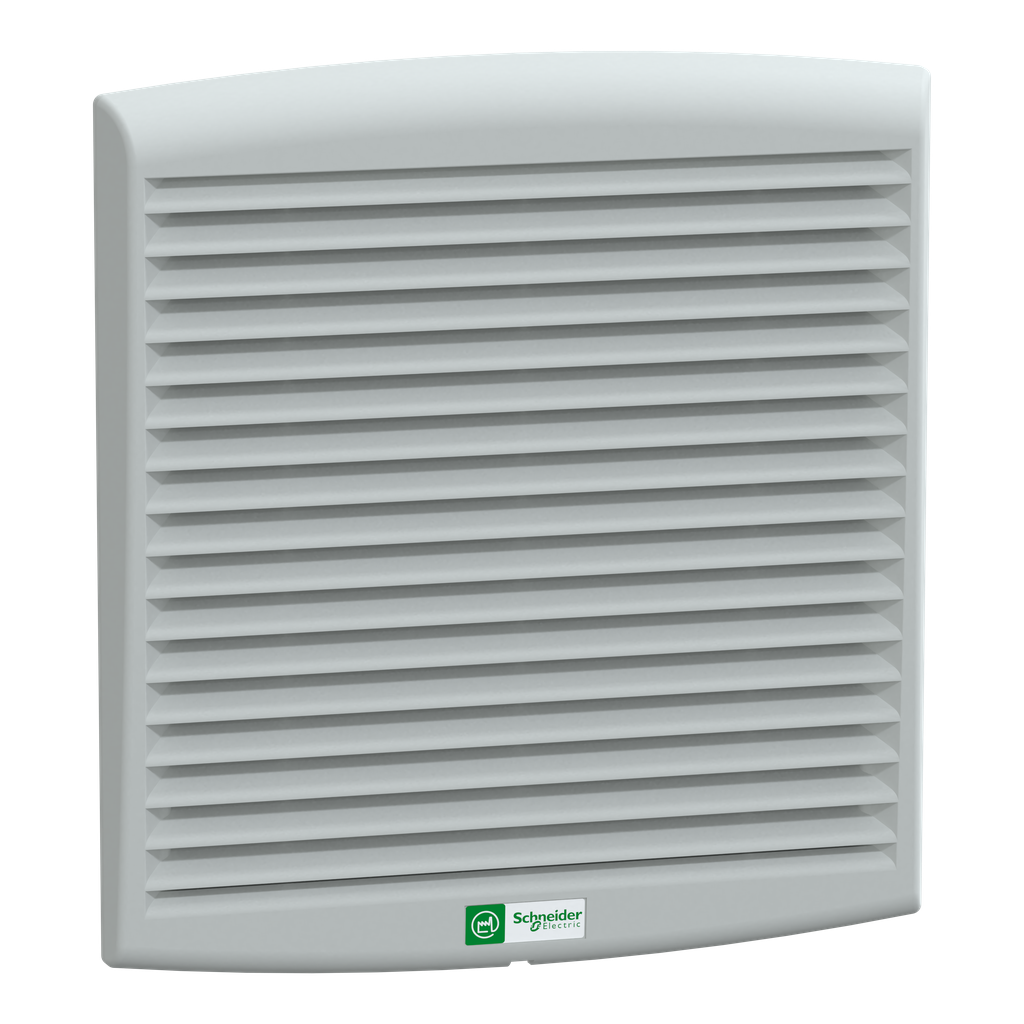

NSYCVF165M230PF - ClimaSys forced vent. IP54, 165m3/h, 230V, with outlet grille and filter G2

NSYCVF165M230PF

ClimaSys forced vent. IP54, 165m3/h, 230V, with outlet grille and filter G2

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 14.3 W 50 Hz, 16.3 W 60 Hz. Free flow rate with standard filter of 156 m3/h at 50 Hz and 193 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Us] Rated Supply Voltage	175...253 V
Air Flow	free flow rate with standard filter: 165 m3/h at 50 Hz free flow rate with standard filter: 193 m3/h at 60 Hz
Type Of Ventilation Filter	standard
Product Or Component Type	fan
Product Name	ClimaSys CV
Range	ClimaSys
Input Voltage	230 V 50/60 Hz
Warranty	18 months
Connections - Terminals	Faston connector
Ambient Air Temperature For Operation	-20-60 °C
Power Range	16.3 W 50 Hz 14.3 W 60 Hz
Condition Of Use	overfrequent filter replacement should be avoided filter must be cleaned and replaced regularly flow rates depends on the work point, see ProClima software outside temperature must be 5 °C lower than inside temperature surrounding environment must be relatively clean
Maximum Pressure	50 Pa flow rate 0 m³/h
Device Composition	1 axial motor 2 protective grille on the front and rear surfaces 1 filter front of axial motor 1 outlet grille front 1 cut-out template 1 power cord
Net Weight	1.14 kg
Depth	external 104 mm
Cut-Out Dimensions	223 x 223 mm
Ambient Air Temperature For Storage	-40-70 °C
Width	external 248 mm
Height	external 268 mm
Material	outlet grille injected thermoplastic (ASA PC)
Ip Degree Of Protection	IP54
Color	outlet grille Gray RAL 7035)
Line Rated Current	0.12-0.12 A 50 Hz 0.94-0.94 A 60 Hz
Bearing Type	ball
Noise Level	50-51 dB
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant
