NSYCUS2K3P4UL

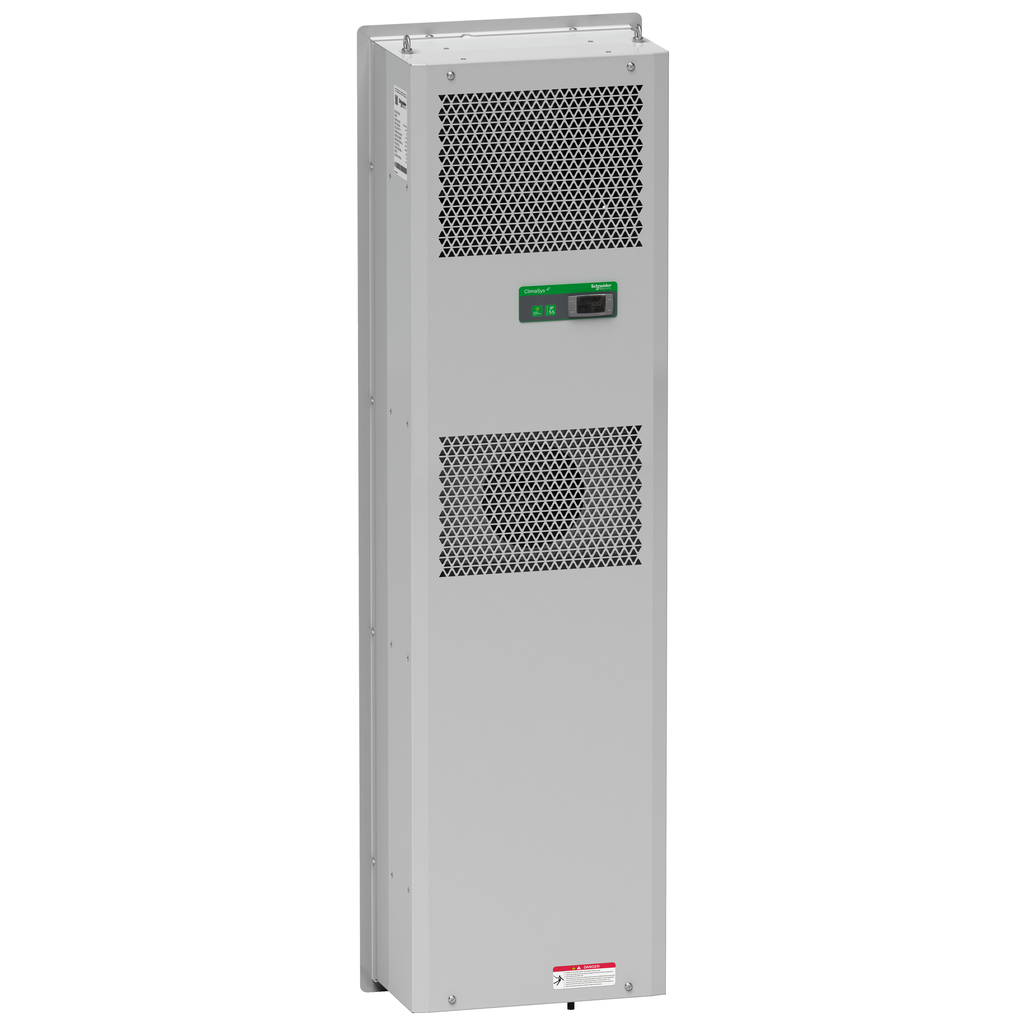

ClimaSys indoor slim cooling unit block - 2000W at 460 V - UL
ClimaSys CU indoor slim cooling unit block. 1696 x 495 x 195 mm. 460V 60 Hz. 3 phases. 1060W 50Hz or 60Hz L35-L35, 1270W 50Hz or 60Hz L35-L50. Flow rate of internal circuit 1050 m3/h at 50Hz or 60Hz and for external circuit 860 m3/h at 50Hz or 60Hz. Control type by electronic controller. Optional external circuit filter. Made in steel grey RAL 7035. Mounting mode by screws. Protection by thermal protection: T 6 A, short-circuit protection (magnetic). IP34 on the internal circuit, IP55 on the external circuit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | for enclosure |
|---|---|
| Cooling Power |
|
| Product Or Component Type | slim cooling unit block |
| Product Name | CU |
| Range | ClimaSys |
| Mounting Location | door of enclosure |
| Mounting Mode | by screws |
| Pressure | 28 bar |
| Air Flow |
|
| Inrush Current | 10 A |
| Protection Type |
|
| Type Of Ventilation Filter | optional external circuit filter |
| Ambient Air Temperature For Operation |
|
| Energy Efficiency Ratio | 1.9 |
| Material | steel |
| Net Weight | 65 kg |
| Depth | 195 mm |
| Control Type | electronic controller |
| Power Consumption In W |
|
| Noise Level | 67 dB EN/ISO 3746 |
| Cooling Gas Type | R134a 0.59 kg) |
| Width | 495 mm |
| Height | 1696 mm |
| Temperature Setting Range | 20-50 °C |
| Line Rated Current | 2.1 A |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2106024EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2106024EN |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL |
| Ip Degree Of Protection |
|
