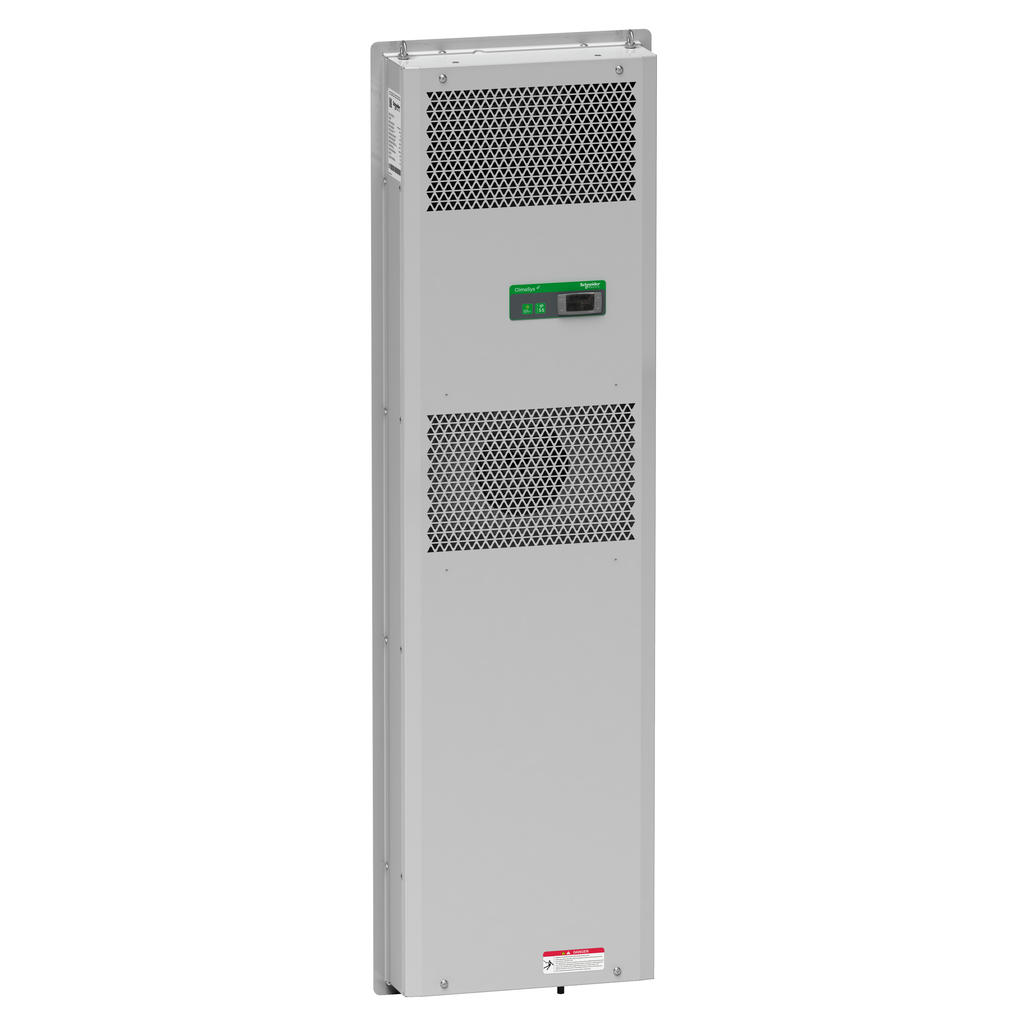

NSYCUS1K1UL
ClimaSys indoor slim cooling unit block - 1100W at 230 V - UL
Specifications
| Product Destination | for enclosure |
|---|---|
| Cooling Power |
|
| Product Or Component Type | slim cooling unit block |
| Product Name | CU |
| Range | ClimaSys |
| Mounting Location | door of enclosure |
| Mounting Mode | by screws |
| Pressure | 28 bar |
| Air Flow |
|
| Inrush Current | 11 A |
| Protection Type |
|
| Type Of Ventilation Filter | optional external circuit filter |
| Ambient Air Temperature For Operation |
|
| Energy Efficiency Ratio | 1.7 |
| Material | steel |
| Net Weight | 50 kg |
| Depth | 195 mm |
| Control Type | electronic controller |
| Power Consumption In W |
|
| Noise Level | 64 dB EN/ISO 3746 |
| Cooling Gas Type | R134a 0.5 kg) |
| Width | 495 mm |
| Height | 1696 mm |
| Temperature Setting Range | 20-50 °C |
| Line Rated Current | 4.8 A |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2106024EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2106024EN |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL |
| Ip Degree Of Protection |
|
